Automatic Producing Cnc Laser Cutting Steel Machine Line and Supplier

Specifications

Automatic producing cnc laser cutting steel machine line and supplier :

Introduction cnc laser cutting steel machine :

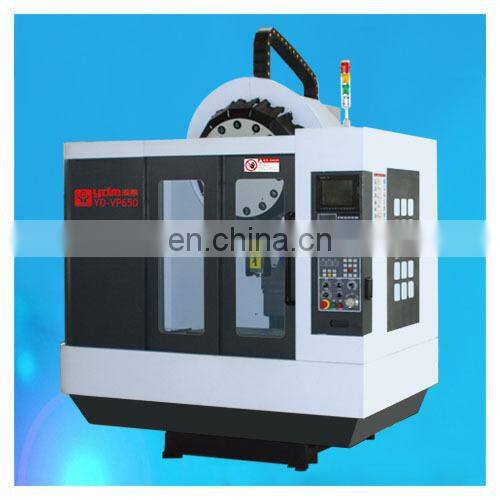

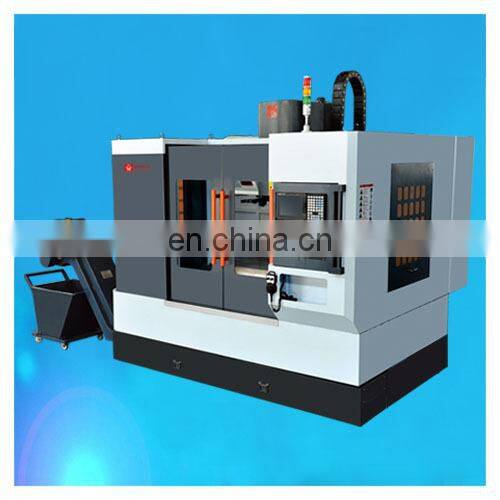

     Vertical machining center, a fixture in continuous complete milling, drilling, expanding, reaming, boring, tapping and two-dimensional, three-dimensional surface, slope precision machining, aviation parts, auto parts, sanitary ware and other high-precision parts of the ideal processing equipment.

  cnc laser cutting steel machine :

(A ) high-precision high-rigidity structure design

1 the main structural parts are made of high quality FC-30 cast iron, structural stability, permanent ensurequality.

2. spindle power head to rib reinforced structure, the spindle power head and the column contact length ratio appropriate to provide solid support spindle .

(B ) high rigidity , high speed feeding system

1.  three-axis motor and direct drive precision ball screw adjustment , enhanced rigidity and improved accuracy.

2.  Z -axis brake motor system in the fast displacement can maintain a high balance and agility to ensure accuracy.

3.  three-axis linear slide, high rigidity , low noise, low friction characteristics, do rapid displacement and obtaining optimum cycle accuracy.

4. rapid displacement X / Y / Z axis 48m/min.

(C) Reliable ATC

(D )  man-machine interface

 touch buttons , round , and text display , simple operation.

( E ) high-speed high-precision linear slide

1.  linear slide zero gap , arc cutting , bevel cutting , surface texture uniform .

2. the choice of high-speed operation , and significantly reduces the required driver horsepower machine .

3. linear guides to rolling instead of sliding , friction loss, responsive, high positioning accuracy.

4. which can withstand the load of vertical and horizontal directions , and the contact surface of the track is still under load multiple points of contact , cutting rigidity does not decrease.

5. easy to assemble , with interchangeable , simple structure and lubrication .

6. high rigidity can provide smooth torque coupling link , to improve the stability of the servo positioning .

Factory showcase:

  Being perfect is a dream.

  Based on the principle of perfection, give best service to all customers.
