Home > Products > rolling machines > Nut bolt making cnc machine screw thread making machine TB-9GY

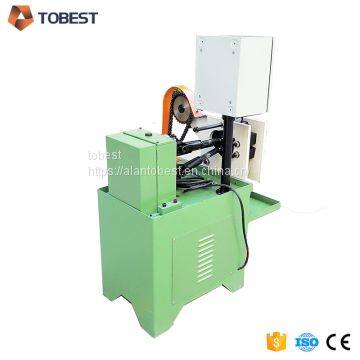

Nut bolt making cnc machine screw thread making machine TB-9GY
- 100 Set / Sets per Month
- shenzhen
- T/T L/C D/P D/A PayPal Other
- 35 days
You May Like
Product Details
| Brand Name | Tobest | Place of Origin | China | |
| Model Number | TB-9GY | After-sales Service Provided | No overseas service provided | |
| Warranty | 1 year, 12 months | Weight | 245KG | |
| Dimension(L*W*H) | 840*690*1190mm | Production Capacity | 5-30 pcs/min | |
| Voltage | 3-380V 50HZ | Certification | ISO 9001-2008, CE, ISO 9001-2008, CE | |
| Application | connectors, bicycles, auto parts | Condition | New | |
| Power(W) | 1470W |
Product Description
nut bolt making cnc machine screw thread making machine TB-9GY
Features:
1.Designed specially for tube-type parts, supported by equal triangles base so that the roundness of part can be guaranteed during rolling.
2.Adopt cam-type tool forward together with stepless speed-variation, the rolling time can be controlled to assure that the product quality can be reach the specified standard.
3.Adopt imported candan joint to guarantee stable driving, the speed variation is controlled by gear box so this machine is suitable for different thread.
4.ISO 9001-2008, CE
Technical parameter of Tobest TB-9GY
| Work piece diameter | φ6-φ9/mm | ||||||
| Range of pitch rolled | 0.75-1.25P | ||||||
| length of thread rolled | 15mm | ||||||
| Outside diameter of rolling die | φ29-40mm | ||||||
| Inside diameter of rolling die | φ20mm | ||||||
| Thickness of rolling die | 15mm | ||||||
| Main power motor | 2HP(1470W) | ||||||
| Cam motor | 100W | ||||||
| Weight(reference) | 245KG | ||||||
| Shipping measurement(L*W*H) | 940*790*1290mm | ||||||
| Dimension(L*W*H) | 840*690*1190mm | ||||||
| Bearing brand | NSK,UBC |
