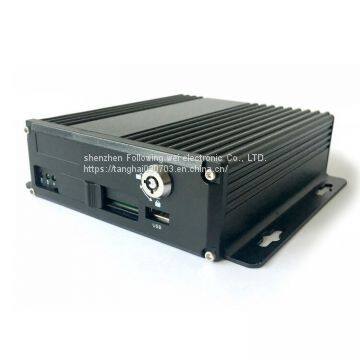

4CH SD Card 720P AHD MDVR for bus/car/truck/motorcycle/mobile/vehicle/boat
- guangdong shengzheng
- Other Cash
- 2 days
You May Like
-
3G4G camera mdvr Car video recorder Wireless real-time positioning real-time surveillance video 720P/1080P
-
3g/4g mdvr1080p/720pAn on-boardRemote gps The remote
-
mdvr gps ahd720p/1080p The remote The coach car bus special logistics
-
ahd The camera ipc Wireless real-time positioning real-time surveillance video 720P/1080P
-
ahd The camera ipc Wireless real-time video 720P/1080P
-
ahd camera720p/1080p ipc Wireless real-time video The camera The built-in mic Interface customization
Product Details
| Brand Name | fdw | Place of Origin | China | |
| Model Number | fd-403z |
Product Description
H.264，4ch real-time 720P AHD HD input or 4CH Analog HD camera input
9V-36V Wide voltage power supply ，Design of ultra-low power consumption
SD storage（Support 1pcs SD,Max:128G）,Can completely resist the car vibration and other cause data corruption.
Support 4ch alarm input，1ch alarm output(optional)
RS232 or RS485 extend (optional)
Support GPS/BD/G-SENSOR Module extend (optional)
3G/4G remote monitor (optional)；
Support Voice broadcast，talk-back and text scheduling distributed function ；Connect Oil flow sensor ,temperature sensor ,POS,LED advertising screen extend (Optional )
OTA equipment auto upgrade function ,maintenance more convenient.
Support Mobile phone monitor (3G,4G model)
High reliability aviation port，High performance ,stable and reliable
Specification
Item | Specification | |
Systems | Linux | |
Language | Chinese,English ,other（OEM optional） | |
Video code | H.264 | |
OSD | Character superposition function, support time information such as date, vehicle ID image superposition | |
GUI | Graph OSD | Connect external display to setup systems parameters by remote controller or mouse |
Video & Record | Video input | 4 ch 720P AHD HD/Analog ，aviation port, 1.0Vp-p, 75Ω |
Video output | 1 ch output , 1.0Vp-p, 75Ω, support single ch or 4ch quad | |
Preview | 1ch,4ch,Support the event trigger | |
Record resolution | 720P、D1、HD1、CIF optional,Max support 4 ch 720P | |
Record quality | 0-7 grade optional | |
Record rate | PAL:100 fps/s，CCIR625line,50 field NTSC:120 fps/s，CCIR525line,60 field CIF:256Kbps - 1.5Mbps，8 grade video quality optional HD1:600Kbps - 2.5Mbps，8 grade video quality optional D1:800Kbps - 3Mbps,8 8 grade video quality optional 720P:800Kbps - 4Mbps,8 grade video quality optional | |
Record model | Default auto record ,ignition record ,time record ,alarm record | |
Audio | Audio input | 4 ch ,Aviation port |
| Audio output | 1 ch ,aviation port ,output level:1V - 2V | |
| Compress | G.726 , rate:8KB/s | |
Alarm input | 4 ch | |
Alarm output | 1 ch | |
Communication port | 1 ch RS232 or 1 ch RS485 Optional | |
Wireless transfer | Built-in 3G/4G wireless transfer,WCDMA,CDMA2000(Optional) Wifi optional | |
GPS /Gsensor | Built-in GPS/BD ,built-in G-sensor，playback vehicle tracking | |
Storage | Storage | MAX 1*128G SD card |
| upgrade | Support SD local update | |
| Video format | H.264 | |
| File systems | FAT32 | |
Playback | Video search | Through record time ,record model ,record event to search |
| Playback | Max 4ch playback ,pause ,fast reverse ,fast forward | |
| Support 2,4,8,16X fast forward/fast reverse | ||
Security management | User password ,admin password management ,support screen lock | |
Serial port expand | Support connect advertising display ,oil capacity control sensor and other external equipment | |
Power& power consumption
| Power management | Adaptive wide power input, with overload, under voltage, short circuit, reverse connect protection function; |
| Voltage input | DC:+10V - +36V | |
| Voltage output | +12V@1.5A，+5V@1.5A | |
| Power-off protection | UPS,Accident can be automatically save record video data, ensure the file is not damaged | |
| Power consumption | Working statue ＜14W， standby statue ＜0.5W | |
Working | Temperature | -20℃ - +70℃ |
| Humidity | 20% - 80% | |
SD mobile dvr | Size | 147mm(L)*137mm(W)*37m(H) |
Weight | 1KG | |
