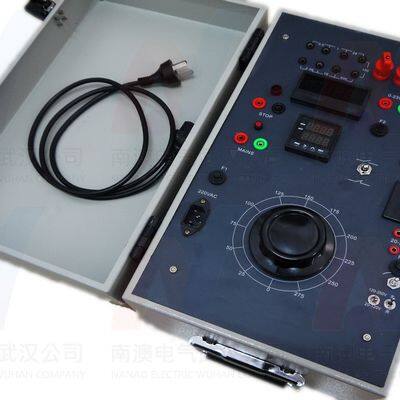

NANAO ELECTRIC Manufacture NADB Single Phase Relay Test Set

Product introduction

NADB Single Phase Relay Test Set adopting single-chip microprocessor technology, combining with automatic synchronized digital millisecond meter, logic control units, multi-function digital display unit, high-precision data acquisition and processing unit, current and voltage output unit, overload and over-range protection unit and other components. Comes with printing and displaying function, automatic testing process, greatly improve accuracy and efficiency.

Single-phase relay tester also with a beautiful appearance, reliable performance, easy to operate, complete functions,that is an ideal instrument calibration protection devices.

Also called name

Protection relay test set, Protective relay test set, protection relay test kit, protective relay test kit, protective relay calibrator, protection relay calibrator, protection relay testing equipment, protection relay testing system, protective relay testing system, protection relay tester, protection relay test device, relay test equipment, relay testing equipment, relay tester, relay test system, relay test set, single-phase relay test kit, single phase relay test sets, Single-phase secondary injection relay test equipment

The main characteristics of testers

1.As the single-phase relay tester adopting microcomputer control, therefore there are only 16 touch switches on the panel, that can complete varies of testing functions, change the old-fashioned relay protect tester which must turn off the power switch and toggle switch to convert power supply type, easy to operate. The single-phase relay tester set self-checking and error function, which convenient for inspection and maintenance.

2.The single-phase relay tester set comprehensive self-checking and self-protection function, which can make immediately self-checking after booting, in the process of overload and over-range measuring, the protection circuit will quickly cut off output, and will give a sounding and light alarm to reduce the unnecessary losses due to misuse greatly.

3.The single phase relay tester with high intelligence, just press a button, that you can measure all the general electric relay parameters, automatically printing, and allowing you free from the tedious testing operation.

4.The device display screen unit, clearly reflect of operating status will show on the display screen.

5.The printed data will all be displayed in English characters, such as "pull-in voltage", "disconnect voltage", "normally open pull-in time" and so on.

The parameters of the products

1. AC voltage output

0 ~ 250V continuously adjustable , the maximum output capacity is 600VA, over- range protection is 260V, error of ± 1%.

2.AC current output

0 ~ 50A, 0 ~ 100A continuously adjustable error of ±1%.

0 ~ 50A , the open circuit voltage is 5V.

0 ~ 100A , the open circuit voltage is 10V. Overload operating current is 120A.

3.DC voltage output

0 ~ 250V continuously adjustable , the maximum current is 2A, over- range protection is 260V, overload trip current is 2.1A ± 5%. Error of ± 1%

4.DC current output

0 ~ 200mA 0 ~ 5 A continuously adjustable error of ± 1%.

0 ~ 200mA , the open circuit voltage is 48V, overload operating current is 230mA.

0 ~ 5A , the open circuit voltage is 24V, overload protective current is 5.2A

5.DC voltage fixed output

The current will up to 2.5A, when the separate output is 110V or 220V. However when AC voltage current and DC voltage current output simultaneously, the total capacity can not exceed 600VA.

6.Digital millisecond meter

Maximum Range: 999 seconds

Resolution: 0.1 millisecond

Accuracy : 0.1% ± 1 word

7.The device adopts four and half- meter A / D conversion , the accuracy is 0.1 % and reading ± 1 word.

8.Accuracy of whole measurement: ≤1%

9.Volume : 480mm×320mm×160mm

10.Weight : 18Kg

Power supply: AC110V/115V/120V/127V/220V/230V/240V optional

Input frequency: 50Hz/60Hz optional

Note: Our users can select the corresponding power which based on their local supply voltage and frequency, and we will confirm it before the delivery (or inform us that the goods will be used in which country advance)
