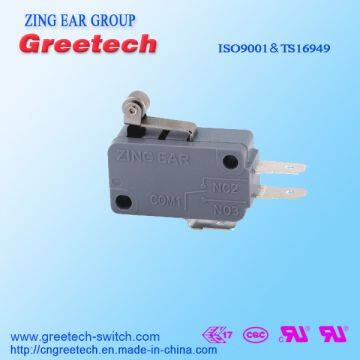

ENEC,UL, CUL, CQC Approval Waterproof Mini Micro Roller Lever Switch 25t125
- Shenzhen
- T/T Other
- 15 days
You May Like
-
Zing Ear Manufacturing Micro Switches 25t125 For Electronics Appliances
-
Zing Ear 3A Micro Electrical Switch KW10 Micro Switch Freeport Ill Usa
-
Zing Ear 3A Micro Electrical Switch KW10 Micro Switch Freeport Ill Usa
-
Zing Ear Manufacturing Micro Switches 25t125 For Electronics Appliances
-
ENEC,UL, CUL, CQC Approval Waterproof Mini Micro Roller Lever Switch 25t125
Product Details
| Brand Name | ZING EAR | Place of Origin | China | |
| Model Number | G5 series | Protection Level | IP00 | |
| Max. Voltage | 125/250/600VAC,48VDC | Max. Current | 22A | |
| Operating Temperature | 25℃~+125℃ |
Product Description
Auto vending machine 11 Amper micro switch 25T125

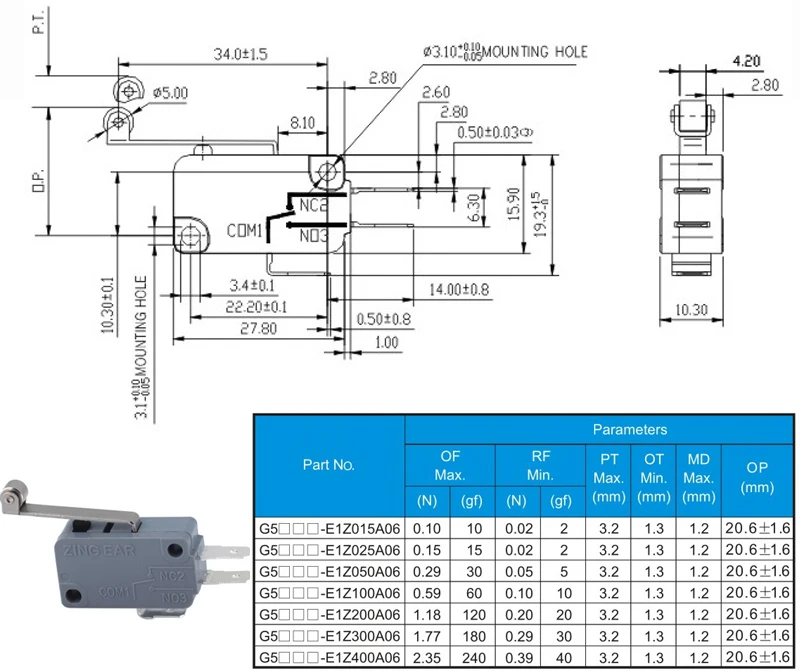

Drawing
| Rating | 08 | ENEC/CQC:8(10)A 250VAC,5E4,25T125 UL/CUL:10.1A 1/2HP 250VAC |
| 16 | ENEC/CQC:16(4)A 250VAC 5E4 UL/CUL:16A 1/2HP 125/250VAC | |
| 22 | ENEC :16(13)A 250VAC 5E4 22(8)A250VAC 1E4 CQC:22(8)A 250VAC 1E4 UL/CUL :22A 1HP 125/250VAC | |
| 05 | ENEC/CQC;0.1A 48VDC 0.1A125/250VAC 5(2.5)A UL/CUL:0.1A 48VDC 0.1A125/250VAC 5A 1/10HP 125/250VAC | |
| 10 | ENEC :10(3)A 125/250 VAC ,0.5A 125VDC 0.25A 250VDC 25T125 5E4 UL/CUL;11A 1/3HP 125/250VAC 0.5A 125VDC 0.25A 250VDC 4A 125VAC L | |
| Operating Frequency | Electrical | 10-~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resitance | 100MΩ Max | |
| Insulation Resistance ( at 500VDC) | 100MΩ Min | |
| Dielectric Strength | AC 1,000V RMS (50~60Hz) | |
| Storage Temperature | (-40°C~ +125°C/85°C) | |
| Storage Humidity | 85% RH max | |
| Service Life | Electrical | 10,000~100,000cycles (Depend on part number) |
| Mechanical | 1,000,000cycles | |
-Home Appliance -Electronic Equipment
-Automatic Equipment -Communication Equipments
-Auto Electronics -Apparatus and Instruments
-Power tools
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Q1. Are you a trading company or manufacturer?
A: Yes. Greetech is a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
