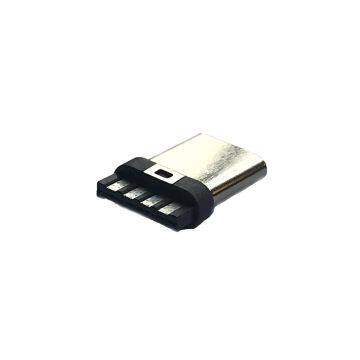

New High Quality 4 Pins Type C plug Male USB Connector made by Copper Alloy and PBT Used for Data Cable

FOB Price

USD $0.01 - $0.1 / Piece

5000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CNB electronics		Place of Origin	China
Model Number	CNB-UCMRTABS14

New High Quality 4 Pins Type C plug Male USB Connector made by Copper Alloy and PBT Used for Data Cable

---Specifications:

Model No.	CNB-UAFRTBBB99-CC
Material	Contact	Copper Alloy (C2680)
	Shell	Copper Alloy (C2680)/SUS
	Housing	PBT / LCP
Finish	Contact	1u Au Plated ON Contact Area Over 60~80U Ni, Sn Plated On Solder Tails
	Shell	Ni Plated 100u
	Plating Time	24 Hours/48 Hours
Electrical Characteristic	Contact Resistance	30mΩ Max
	Insulation Resistance	1000mΩ Min
	Rated Current	1.5A
	Rated Voltage	30V
	Dielectric Withstanding Viltage	500V AC for 1 minute
Environmental	Opterating Temperature	-55~85℃
Mechanical Characteristic	Duribility	10000 cycles
	Insertion Force	35N (3.57kgf) Max
	Unnmating Force	10N (1.02kgf) Min

--- Details:

---Drawing:

---Packaging:

* 1000pcs in a bag
* 10 bags in a carton
* the size of carton: 36.5*24.5*20 cm
* Weight: about 8.5kg (500pcs in one carton)
