ZZF Vibrating Feeder From Winner
- Tianjin, Dalian,Shanghai,Kunshan,Guangzhou,Fuzhou,Lianyungang,etc.
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
You May Like
Product Details
| Brand Name | WINNER | Place of Origin | China | |
| Model Number | ZZF | Certification | CE,ISO9001,ISO14001,OHSAS18001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 years | |
| Power Type | Electric | Application | metallurgy, mineral processing, coal and other industries. | |
| Condition | New | Power(W) | 11-74kw | |
| Capacity(t/h) | 1000-5000t/h |
Product Description

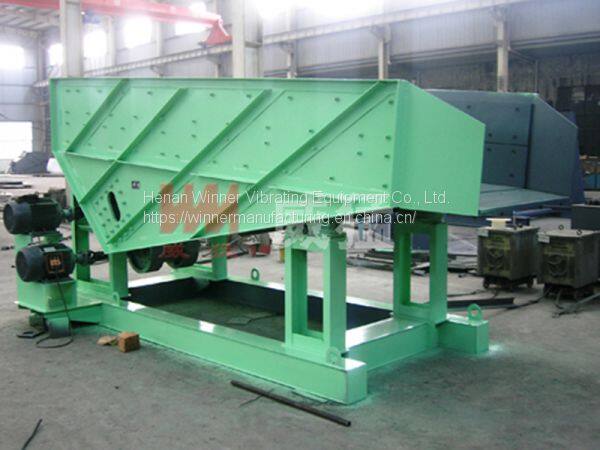

ZZF vibrating feeder from Winner
Introduction Overview of ZZF vibrating feeder from Winner:
ZZF vibration feeder is composed of motor, tank, transmission shaft, exciter, leg and damping spring, the feeding process is driven by the vibrator driving groove in the mine with two motors, along the inclined direction do linear reciprocating cycle to achieve feeding, eventually the material continuously and uniformly sent to the receiving opening. Is the necessary equipment to implement automated assembly line.
Application of ZZF vibrating feeder from Winner:
ZZF vibrating feeder is widely used in the following industries: metallurgy, mineral processing, coal and other industries.
Advantages of ZZF vibrating feeder from Winner:
1.Small size, light weight, simple and compact structure;
2.Installation and maintenance is convenient, operation cost is low;
3.Large feeding capacity;
4.Low noise, is beneficial to improving the working environment;
5.Energy saving: low power consumption, high power factor;
6.Stable amplitude, reliable operation, strong adaptability to various materials;
7.ZZF series vibrating feeder can achieve automatic, timing and quantitative ore-drawing;
Technical parameter table of ZZF vibrating feeder from Winner:
Model | Feeding granularity | Angle | Capacity | Motor | Power | Vibration frequency | Double amplitude | Remarks |
mm | o | t/h | Kw | Hz | mm | |||
ZZF-1000 | 0-300 | 18 | 1000 | Y132M2-6 | 2x5.5 | 16.6 | 6-8 | Without secondary vibration reduction |
ZZF-1500 | 0-300 | 20 | 1500 | Y160M-6 | 2x7.5 | 16.6 | 6-8 | |
ZZF-2000 | 0-300 | 20 | 2000 | Y160L-6 | 2x11 | 16.6 | 6-8 | |
ZZF-2500 | 0-500 | 20 | 2500 | Y180L-6 | 2x15 | 16.6 | 6-8 | |
ZZF-3000 | 0-500 | 20 | 3000 | Y225S-8 | 2x18.5 | 12.5 | 6-8 | With secondary vibration reduction |
ZZF-3500 | 0-500 | 20 | 3500 | Y225M-8 | 2x22 | 12.5 | 8-11 | |
ZZF-4000 | 0-800 | 20 | 4000 | Y225M-8 | 2x22 | 12.5 | 8-11 | |
ZZF-5000 | 0-1000 | 23 | 5000 | Y280S-8 | 2x37 | 12.5 | 8-11 |
