- Halation Photonics Corporation
-
Suzhou, Jiangsu, China
- Main products: E-paper Display, ESL, E-Shutter, Electronic Shelf Label, MSLC, Multi stable liquid crystal, Dynamic Privacy Film , active glass, Privacy device, Eink, Eink label
Home > Products > H-ESL-MSLC > 4.0 inch Electronic Shelf Label ESL，LCM，LCD，RFID，E-paper Display

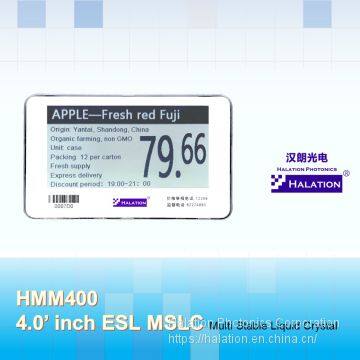

4.0 inch Electronic Shelf Label ESL，LCM，LCD，RFID，E-paper Display
- Shanghai
- T/T Credit Card Cash
- 60 days
You May Like
Product Details
| Brand Name | Halation | Place of Origin | China | |
| Model Number | HMM400 | Type | STN |
Product Description
?Major Features
?Zero power to maintain still image
?Flexible area background color design(customer design)
?High contrast
?High reflectance
?Wide viewing angle
?Pure reflective mode without backlight or polarizer
?Flexible Dot Matrix display to show complex information and barcode
?paper like reading performance
?Multi- languages enabled
?Error rate: less than 1/10,000,000
Please contact to +86 0512 69561806
or Email to sales@halation.com for specific prices
The HLCM panel is a dot-matrix passive-driven LCD using flat glass substrate. It contains Halation’s proprietary bistable liquid crystals and its driver is COG (chip on glass) based.
MSLC display module is using the similar structure of dot matrix STN LCD and its process, but has advantages in many different application fields
Flexibility for Customer Size
Halation provide standard sizes from 2inch to 4inch, but customer sizes could also be provided by low cost tooling within short period and limited volume.
High Yield Existing Supply Chain
Halation is using existing STN production line for MSLC display volume production with high yield rate. The volume can easily ramp up.
Contrast Ratio (Konica Minolta CM-2300d) | 7 : 1 |
Max. Reflection (Konica Minolta CM-2300d) | 35% |
Viewing Angle | 175° |
Supply logic voltage | 3.0V |
Name | ESL-Epaper Display Label 4.0inch (MSLC) dot matrix lcd module |
Model Number | HMM400 |
Size | 4.0" inch |
Product Size (mm) | 117.1x70.7x14.7 |
Display Area (mm) | 90.73(H) × 46.21(V) |
Display Color | Black/White |
Display Resolution | 424(H) × 216(V) pixels |
PPI | 119 |
Pixel Pitch (mm) | 0.214 × 0.214 |
Display Type | MSLC |
Working Temperature | 0℃~40℃ |
RF | 433M |
Transfer | Text/Graphic |
Working Life | 5years (one refresh/day) Room Temerature |
Used | For ESL and other E-paper display Devices |
Warranty | 12 Months |
Lead time | 1 day |
Inspection | 100% One by One, Visual inpection + Function inpsection |
