QT-IN12-W Double Ring Infiltrometer
- 1 Piece / Pieces per Month
- 90 days
You May Like
Product Details
| Brand Name | QT-IN12-W | Model Number | QT-IN12-W |
Product Description

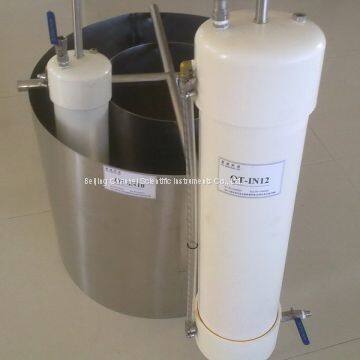

QT-IN12-W Double Ring Infiltrometer
/en/Item/Show.asp?m=1&d=1208
Product description: Double ring infiltrometer is a simple device used to measure the rate of water infiltration into soil. Water infiltration rate is the water flows into a unit cross section of soil per unit time. It can be calculated by the measuring results and Darcy's law.
The standard device includes several sets of stainless steel rings with different diameter, which can deal with several measurements at the same time to get accurate and reliable results. When vertical water flows to the edge, the outer ring of the infiltrometer will play a role in isolation. The water in the inner ring flows vertically, thus the measurement only occurs in the inner ring. Press these two rings into the soil a few centimeters deep by shock absorbing hammer. Because the inner and outer rings are filled with water, the water actually infiltrates vertically from the inner ring into the soil. To achieve a good result, the following factors that may affect the measurement should be taken into account: surface vegetation, soil density, soil temperature and soil layers. The best measurement results are derived from on-site water holding capacity.
Application:
Geology, civil engineering, hydrology, forestry, environmental testing, hydrogeology, runoff, swamp protection, permeability testing, construction project etc.
Measuring standard:
The soil with infiltration rate within 1X10-2 cm/s or sandy soil with higher infiltration rates.
Features:
· Consist of two cylindrical buckets with the diameter of 30cm and 60cm.
· Made of durable stainless steel.
· Cross stainless steel tubes in the center to keep steady.
· Easy to press into soils
· Easy to operate with perpendicular steel handles
· Need to operate with Mariotte tubes
Technical Parameters:
Diameter of inner ring | 30 cm |
Volume of inner ring | 3000 ml |
Diameter of outer ring | 60 cm |
Volume of outer ring | 10000 ml |
Height of cylindrical buckets | 50 cm |
Material of cylindrical buckets | High-quality stainless steel |
Material of Mariotte Tubes | PVC |
Origin: China
