Home > Products > Turgo turbine > Electric Turgo Water Turbine Generator Kit

Electric Turgo Water Turbine Generator Kit

FOB Price

US$ 2000 - 500000 / Set

1 Set(Min. Order)

Port Shanghai or Chongqing
Payment TermsT/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail180 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CSEC		Place of Origin	China
Model Number	n/m		Type	Other, Turgo turbine

Product Description

Electric turgo water turbine generator kit

Product Overviews

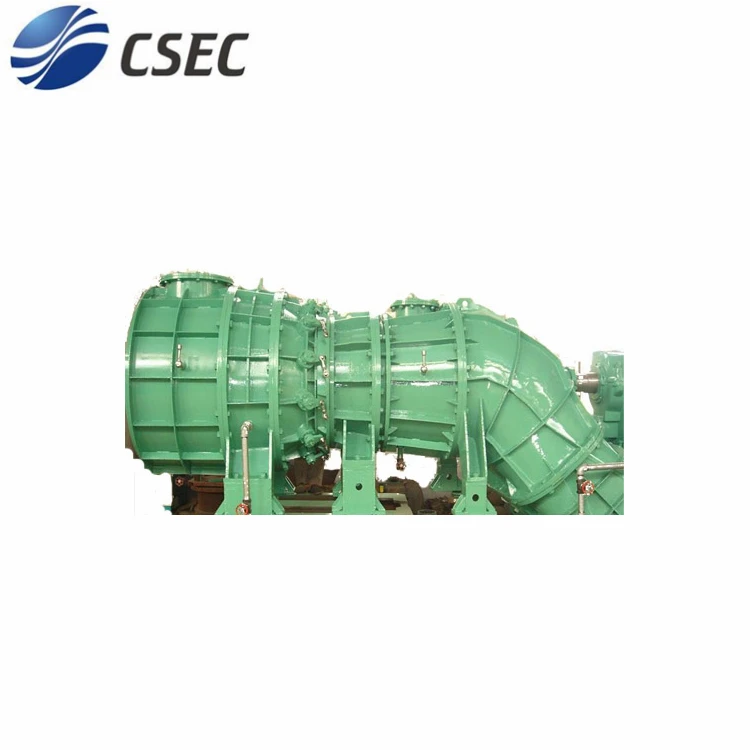

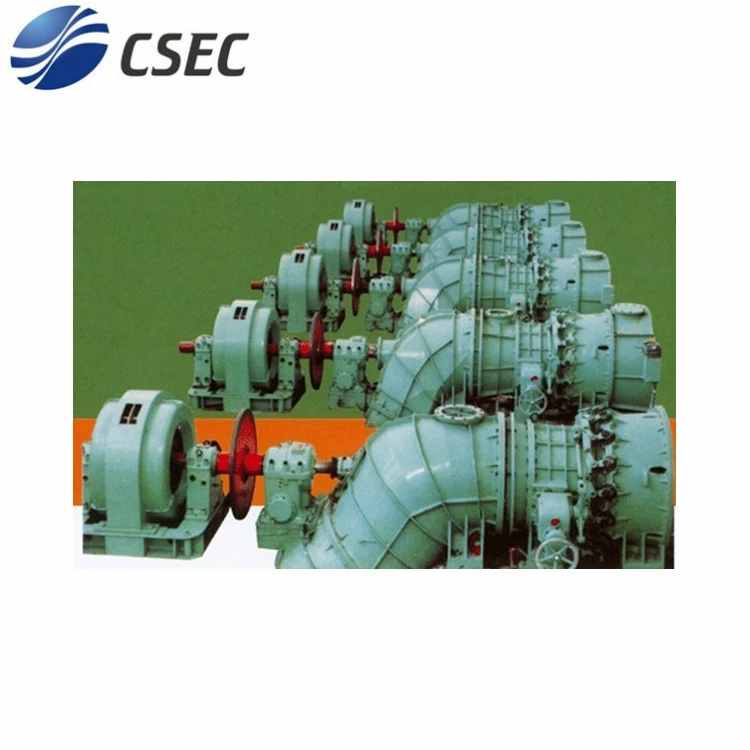

Tubular turbineThe Tubular type turbines are usually the best choices for exploitation of tidal power and hydraulic power with extremely low heads and extremely large flow rates. They have the advantages such as large discharge, high flow speed, high efficiency and less excavation, etc. Their variations have Bulb, Pit, Siphon and S types according to their structural types.

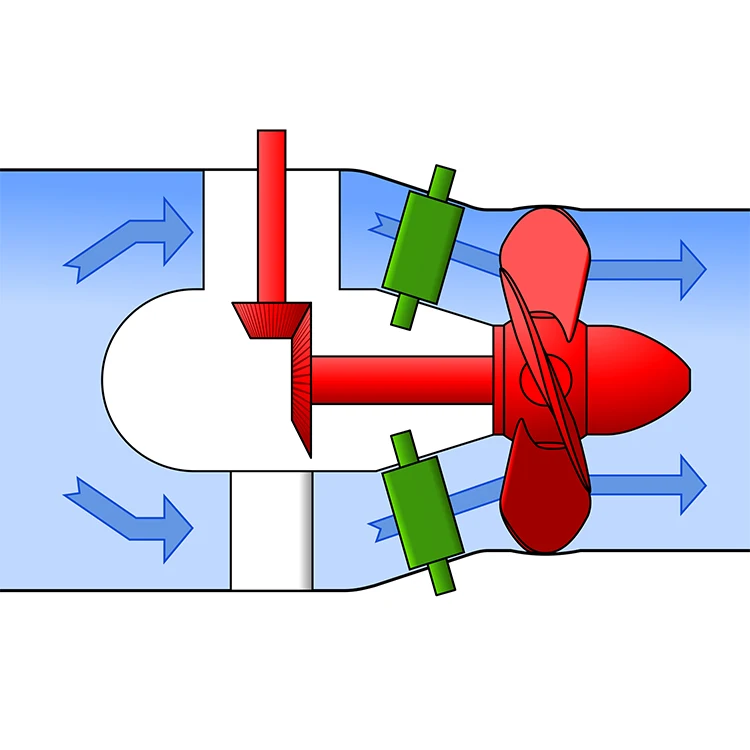

The water diversion parts, runner and water drainage parts of Tubular turbine are on one axial line. The water flow directly and straightly through the runner without spiral casing. The water flow is axial from the pipe inlet to the draft tube outlet.

Tubular turbine generally has two categories: fully tubular and half tubular. The half Tubular turbine is divided into bulb, pit and shaft extension types, etc.

The generator’s rotor of the full tubular type unit is on the outer circle of turbine’s runner, whose application is less because of its difficult sealing.

For half Tubular turbine, the generator is separate from the hydro turbine:
Tubular type: Generator set is installed inside the airtight bulb body, which has a compact structure, straight passage shape, high hydraulic efficiency and so it is widely used.
Shaft extension type tubular unit: The generator is installed outside, the main shaft of turbine extends to the outside of the draft tube.
Pit type tubular unit: The generator is installed inside a pit.

Technical Parameters

Hydro Turbine Generator units & Accessories with Unit Capacity 1 00KW- 1 00MW
Type of Hydro Turbine Generator Units: Francis, Kaplan, Pelton, Turgo, Tubular, Bulb etc.

Type Item	Francis	Kaplan	Pelton, Turgo	Tubular , Bulb
Turbine
Model	HL	ZD, ZZ	CJ, XJ	GD, GZ
Rated head (m)	10 - 300 m	2 - 70 m	80- 1600 m	2 - 20 m
Rated flow (m 3 /s)	0.3 - 100	1.0 - 200	0.1 - 20	1.0 - 250
Rated speed (rpm)	68.2 – 1500 rpm	68.2 – 750 rpm	150 – 1500 rpm	75 – 500 rpm
Rated output (KW)	100KW-100MW	100KW-100MW	100KW-80MW	200KW-60MW
Runner Diameter (M)	0.4 – 6.0 m	0.8 - 8.0 m	0.8 - 6.0 m	0.8 – 6.0 m
Generator
Model	SF	SF	SF	SF
Rated Capacity (KW)	100KW-100MW	100KW-100MW	100KW-80MW	200KW-60MW
Rated output (KW)	100KW-100MW	100KW-100MW	100KW-80MW	200KW-60MW
Rated voltage(KV)	0.4, 6.3, 6.6, 10.5	0.4, 6.3, 6.6,10.5	0.4, 6.3, 6.6, 10.5	0.4, 6.3, 6.6, 10.5
Rated speed	68.2-1500rpm	68.2-750rpm	150-1500rpm	75-500rpm

Main Products

Pelton turbine Tubular turbine Francis turbine

Kaplan turbine Mini Hydro turbine Pelton Turbine Runner

Why Choose Us

PROJECTS REFERENCE
Item	Project Name	Capacity	Scope &Service	Location
1	Mancahuara I Hydropower Plant	1x1.6MW	Hydro Turbine Generator Set &Supervision	Peru
2	Georgia Hydropower Plant	12MW	Pelton Runner &Installation	Georgia
3	Upper Madi Hydropower Plant	2x12.5MW	Design, E&M Package, Installation and Commissioning	Nepal
4	Arisu Hydrpower Plant	2×1.6MW+1×800KW	Hydro Turbine Generator Set &Supervision	Turkey
5	Dikshi Hydropower Plant	3x200KW	E&M Package, Supervision and Commissioning	India
6	Hidolena Hydropower Plant	3×2.6MW	Hydro Turbine Generator Set &Supervision	Chile
7	HAVVA Hydropower Plant	3x2.2MW	E&M Package &Installation	Turkey
8	Nicaragua Hydropower Plant	2x1.7MW	Hydro Turbine Generator Set &Supervision	Nicaragua
9	Ecuador Hydropower Plant	1x3MW	Pelton Runner	Ecuador
10	Tala Burn Hydrpower Plant	1x2.4MW	Hydro Turbine Generator Set &Installation	New Zeland
11	Cehevers I &II Hydropower Plant	2×4.54MW+2×3.45MW	E&M Package &Installation	Turkey
12	Adipasir 3 hydropower Plant	1x320KW	Hydro Turbine Generator Set &Supervision	Indonesia
13	Shah Delir Hydropower Plant	1x1.5MW	Hydro Turbine Generator Set	Afghanistan
14	Kukdong II Hydropower Plant	1x800KW	Hydro Turbine Generator Set &Installation	South Korea
15	Russia Hydropower Plant	1x1061KW	Hydro Turbine Generator Set &Supervision	Russia
16	Ilungu Ward Hydropower Plant	1x370KW	Site Survey &Design, E&M Package, Installation and Commissioning, Supervision for Civil Engineering	Tanzania
17	Selishte Hydrpower Plant	2x1000KW	Hydro Turbine Generator Set &Supervision	Albania
18	Misgar-II Hydropower Plant	1x1000KW	E&M Package, Supervision and Commissioning	Pakistan
19	Barsuk Hydropower Plant	3x1.7MW	Hydro Turbine Generator Set &Supervision	Russia
20	WPDA, Ghanche District	2.7MW	Generators	Pakistan
