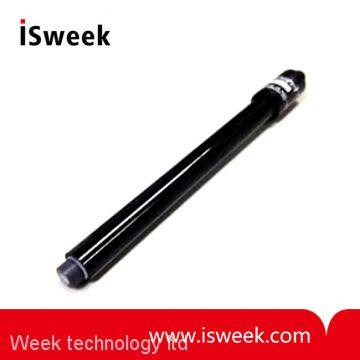

IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes
- 1000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
You May Like
Product Details
| Brand Name | Sensorex | Place of Origin | United States | |
| Model Number | IS200CD/IS222CD Series | Usage | Other, Water Quality Sensor | |
| Theory | Other, ISE Electrode |
Product Description
Parts covered by this product data sheet include:
IS200CD-NH4, IS200CD-CL, IS200CD-F, IS200CD-NO3, IS200CD-K,
IS222CD-NH4, IS222CD-CL, IS222CD-F, IS222CD-NO3, IS222CD-K
IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes Features
? Easy-to-use combination sensors
? ISE types available: Fluoride (F-), Chloride (Cl-), Ammonium (NH4+), Postassium (K+) and Nitrate (NO3-)
? Fixed cable or quick-disconnect cartridge
? Rugged epoxy body
IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes Description
Sensorex offers a combination Ion Selective Electrodes (ISE's) for Fluoride (F-), Chloride (Cl-), Ammonium (NH4+), Postassium (K+) and Nitrate (NO3-) measurement. These covenient combination electrodes use just one electrode to measure ppm of ions.
All Sensorex ISE's are housed in rugged plastic bodies and offer a choice of fixed cable or detachable cable design.
Use these electrodes with your ISE meter, pH meter in mV mode or with any mV input device.
Sensorex ISE's require little to know cleaning and are maintenance free (no reference or ISE refill solution required).
Each electrode is shipped in a bottle with or without a storage solution and are ready for immediate use.
IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes ELECTRODE SPECIFICATIONS
| Dimensions: | 6.50" (165 mm) H x 0.476"(12 mm) OD |
| Wetted Materials: | ISE pellet (F- , Cl-) |
| Temperature Range: | 0-60°C (F- , Cl- only) |
| Isopotential Point: | NH4+ = 0 +/-20mV (1ppm) |
| Slope: | 56 +/-4mV |
| pH Range: | Cl- : 2 - 10 pH |
| Concentration Range: | Cl- : 5 x 10-5 to 1M |
| Response Time: | 90% in 1 minute |
| Interferring ions: | NH4+ = K+. Li+, Na+, Cs+ |
IS200CD/IS222CD Series Epoxy Body Combination ISE Electrodes Ordering Information
| Part Number | ISE Type | Description |
| IS200CD-NH4 | Ammonium (NH4+) | Combination ammonium ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body |
| IS200CD-CL | Chloride (Cl-) | Combination chloride ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body |
| IS200CD-F | Fluoride (F-) | Combination fluoride ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body |
| IS200CD-NO3 | Nitrate (NO3-) | Combination nitrate ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body |
| IS200CD-K | Potassium (K+) | Combination potassium ISE electrode, 6.5" (165mm) L x 0.48" (12mm) OD, 30" (0.76m) fixed cable, black epoxy body |
| IS222CD-NH4 | Ammonium (NH4+) | Combination ammonium ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653. |
| IS222CD-CL | Chloride (Cl-) | Combination chloride ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653. |
| IS2222CD-F | Fluoride (F-) | Combination fluoride ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653. |
| IS222CD-NO3 | Nitrate (NO3-) | Combination nitrate ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653. |
| IS222CD-K | Potassium (K+) | Combination potassium ISE electrode cartridge 5.7" (145mm) L x 0.48" (12mm) OD, 30" (0.76m), black epoxy body. Requires cable assembly S653. |
