LL602 Submersible Liquid Level Transmitter/Meter
- 600 Piece / Pieces per Month
- Shenzhen or Hongkong
- T/T PayPal Other
- 15 days
You May Like
Product Details
| Brand Name | LD or OEM | Place of Origin | China | |
| Model Number | LL602 series |
Product Description

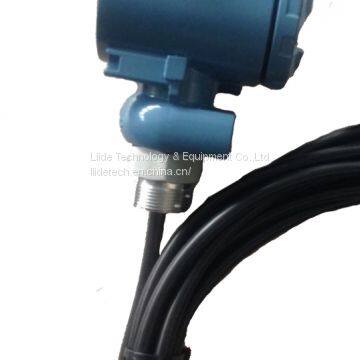

LL602 Submersible Liquid Level Transmitter/Meter
LL602 submersible liquid level transmitter/meter is designed for pressure and level measurement for liquids that compatible with stainless steel. Assembled with diaphragm diffusion silicon, it has high accuracy, long stability, good performance, long working life. With aluminum housing in the electrical connection end, level and pressure can be easily measured and displayed. It is widely used in water treatment system, metallurgy, electricity, power, petroleum, chemical industry, sewage treatment, ocean survey, hydrological monitoring, water conservancy projects and so on.
Specification:
Pressure range: | 0 to 0.3m…300m H2O | Medium | liquids compatible with stainless steel |
Output signal | 4-20mA,1-5V, 0-5V | Pressure type | Gauge pressure |
Stability: | 0.2%/year | Accuracy: | 0.2%FS, 0.25%FS, 0.5%FS |
Power supply: | 12-32VDC | Lead wire: | Direct cable |
Protection: | IP68 | Relative humidity: | ≤90% |
Working temperature: | (-30 to 85°C ) | Storage temperature: | (-40 to 125°C） |
Model & Ordering guide
LL602 | Submersible Liquid Level Transmitter/meter | ||||
Accuracy | 2 | 0.2%FS | |||
3 | 0.25%FS | ||||
5 | 0.5%FS | ||||
Outpur signal | A4 | 4-20mA | |||
V0 | 0-5V | ||||
V1 | 1-5V | ||||
R4 | RS485 | ||||
Range | *** | 0 to 0.3m…200m H2O ( please write directly, for example: 50mmH2O) | |||
Cable length | M** | for example 5 meters: M05 | |||
