Home > Products > Switch Controller > Intelligent Pressure Controller
Intelligent Pressure Controller
- T/T
You May Like
Product Details
| Brand Name | CJ | Place of Origin | China | |
| Model Number | CJZK03 |
Product Description
Model: CJZK03
Specifications
Pressure range: gauge -0.1…0～0.01…100MPa
Overpressure: 1.5 times FS or 110MPa（min.value is valid）
Output signal: analog 4～20mADC; digital: RS485
Accuracy: 0.25%FS;+0.5%FS（MAX.）
Zero temp. drift: +0.03%FS%℃（≤100kPa） +0.02%FS%℃（＞100kPa）
FS temp. drift: +0.03%FS%℃（≤100kPa） +0.02%FS%℃（＞100kPa）
Long-term stability: ≤+0.3%F.S/year
Relay quantity: 1～4 , AC 220V/3A
Relay life: ＞100000 times
Power supply: 220VDC or 24VDC
Display range: -1999～9999
Working temp.: -20℃～80℃
Storage temp: -40℃～120℃
Pressure port: stainless steel 1Cr18Ni9Ti
Diaphragm: stainless steel 316L
Material of ‘O’sealing ring: fluororubber
Material of Wire: polyethylene
Electric housing: aluminum-alloy, stainless steel Sealing method: Viton or full-welded

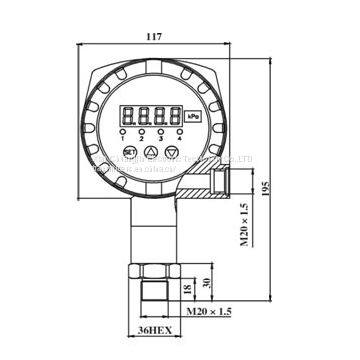

Pressure port: M20×1.5 male, G1/2 or optional
