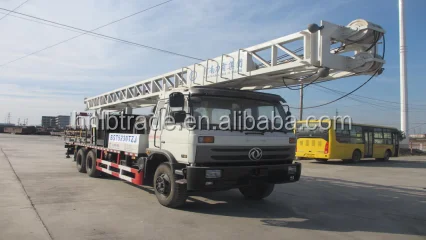

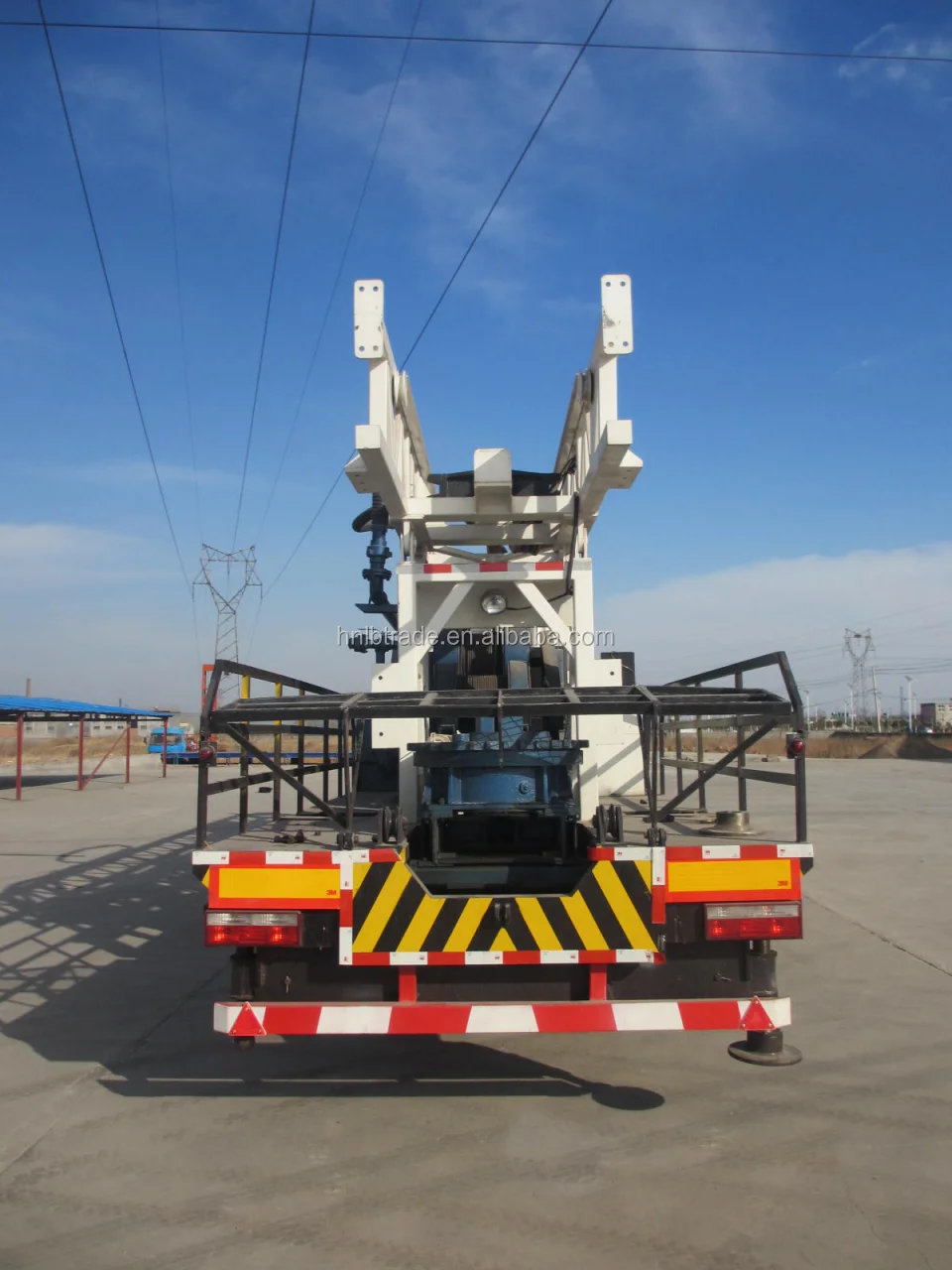

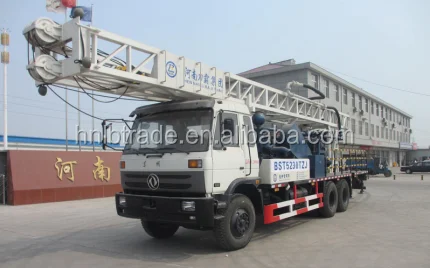

LIBA High Efficiency Drilling Machine Drilling Truck Mounted Dongfeng Truck

LIBA high efficiency Drilling Machine Drilling Truck Mounted Dongfeng Truck

Application:

Currently, truck mounted drilling rig has found applications in water conservation projects, the drilling of industrial deep well, conventional water well and geothermal well, etc.,  It is applicable for drilling into clay, sand, bed rock, basalt strata, and more.

Main features:

1. BST truck drilling rig is a truck mounted and a rotary drilling rig.

2. The truck chassis adopts the 6X4 special crane chassis, the main transmit, transmission power, gearbox, sets of winch, mud pump, sewage pump, mast are set up on the chassis.

3. This rig is a rotary drilling rig with directional circulation, which is equipped with  mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

4. The power of drilling rig comes from the independent 100kw engines; the rig setups distribute implement and hydraulic system.

6. The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

7. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

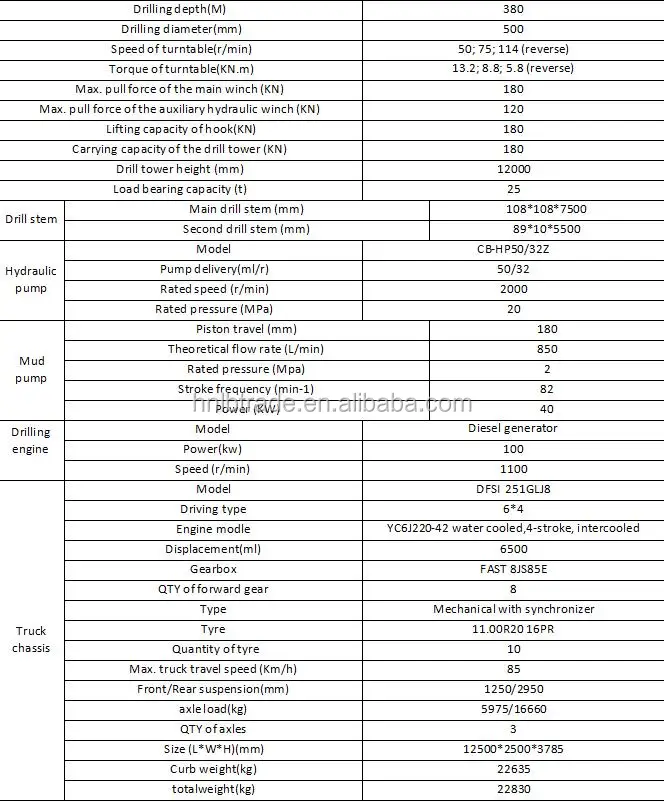

Truck Drilling Machine Parameters:

Our service:

1. Pre-sale service.

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.
1> Select suitable model & matched equipment.
2> Strong technical support. Reply clients’ questions within 24 hours.

2. Service during the sale.
We have responsible team from raw material to finished products, and guarantee 100% pass rate.
1> Design and manufacture products basis of client’s special requirement
2> Inspect each machine & matched accessories strictly before delivery
3> Timely inform client of production progress.

3. After-sale service.
We're always with you in after-sale service.
1> We can arrange related after-sales representatives for debugging and training at worksite when starting up.
2> E-mail, call or door-to-door service in later using.

Following questions will help you to get suitable drilling machine for your business.

1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation

Piling or others?
2. The Max. depth of drilling you hope to achieve?
3. The Min. and Max. hole diameter you estimate?
4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the

soft and hard layers?
