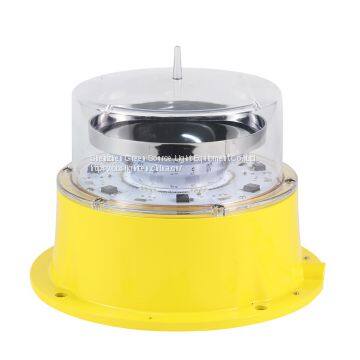

Medium intensity Double Color Aviation Obstruction Light/led tower light
- Shenzhen
- T/T L/C
- 7 days
You May Like
-
Medium intensity Double Color Aviation Obstruction Light/led tower light
-
solar marine latern
-
Heliport Elevated Perimeter Light
-
ICAO conformity Low-intensity Aviation Obstruction Light
-
compliant with ICAO Low-intensity Double Aviation Obstruction Light
-
Medium-intensity Type B integrated Solar Aviation obstruction Light
Product Details
Brand Name | Green Source | Place of Origin | China | |
Model Number | GS-MI/D | Certification | BV | |
Light Source | LED | Base Type | 2G11 | |
Lamp Body Material | Aluminum Alloy | Emitting Color | Red | |
IP Rating | IP68 | Beam Angle(°) | 7 | |
Color Temperature(CCT) | Cool White | Lamp Luminous Flux(lm) | 2000 | |
Input Voltage(V) | 20W |
Product Description
Description
GS-MI/D medium-intensity double color aviation obstruction Light, its base is caste by high intensity aviation aluminum with full sealed structure;Light source adopts high efficient LED chip , which has the high light intensity, long service life, lamp shade adopts PC materials, which has strong ability of corrosion, anti-UV, anti-shock;intelligent circuit design,it emitted white light at daytime and change to red light automatically at night, control circuit has strong ability of lighting protection and with anti-surge protection device, it can adapt to extremely bad working environment.This lamp provide many kinds of function, user can adjust as require.
Specification
Parameter | |
FAA Standard | L-864/865 |
Type | GS-MI/D |
Power voltage | AC180V~264V |
Power Supply Frequency | 50HZ~60HZ |
Average power consumption | ≤20W |
Flash rate | red light:20~40times/min |
Continuous working time | 200ms at night, 100ms at daytime |
Light intensity | 2000cd (±25%)~20000cd (±25%) |
Horizontal Out-put | 360° |
Vertical Divergence | ≥3° |
Service Life of the Light Source | ≥20years |
Emitting Color | White at daytime,red at night |
Overall Size(mm) | 255mm×255mm×210mm |
Installation Size(mm) | ¢234mm×M8 |
IP Protection | IP68 |
Optically Controlled Ambient Brightness | 50/100Lux |
Ambient Temperature | -50℃~65℃ |
Net Weight | 5.5kg |
Anti-Wind Ability | 80m/s |
Function&Features
l The shell adopts high intensity aviation Aluminum to cast, with full-seal structure.
l With CREE Chip, Which has the specific of high intensity, low power consumption , long service life.
l Independent researching and developing advanced optical system, field angle follow FAA and ICAO requirements.
l Lamp shade adopts PC material, which has strong ability of corrosion, anti-UV, anti-shock;
l With anti-surge protection device,it can adapt to extremely bad working environment.
l Adopt advanced high thermal conductivity baking paint technology, provide excellent heat dispersion, it can reduce lamp volume and weight.
l With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather
l With over-current protection function.
l Customized GPS function.
