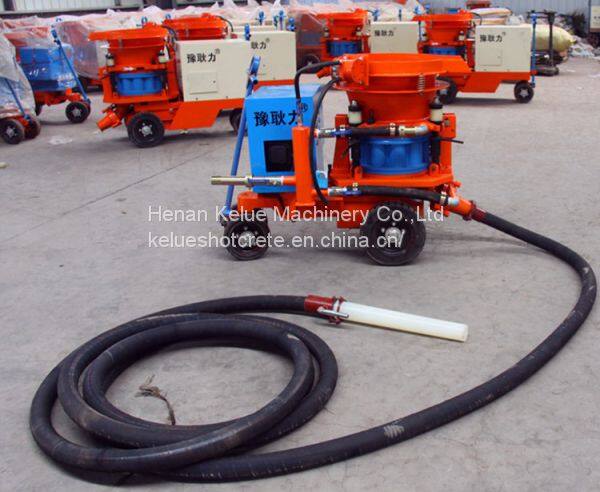

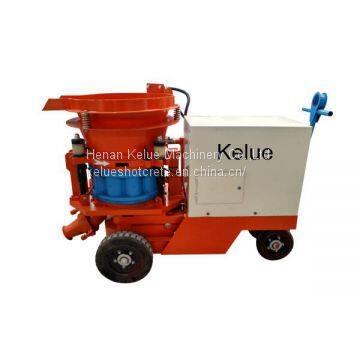

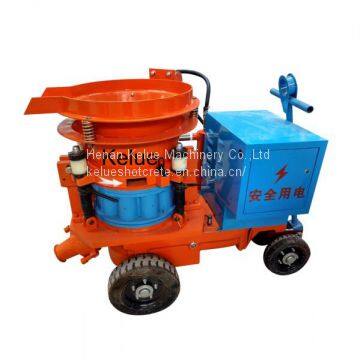

Sewers and Ditches Dry Concrete Gunite Machine
- QINGDAO SHANGHAI TIANJIN
- T/T L/C
- 3 days
You May Like
Product Details
| Brand Name | KELUE | Place of Origin | China | |
| Model Number | PZ-6 | After-sales Service Provided | No overseas service provided | |
| Warranty | 12 months | Weight | 600kg | |
| Dimension(L*W*H) | 1520*900*1100mm | Voltage | 380V | |
| Certification | iso | Condition | New | |
| Power(W) | 5.5kw | Air Consumption | 8-10M3/H | |
| Hose Inner Diameter | 51 | Max Aggregate Size | 20mm | |
| Max. Conveying Distance | 200m |
Product Description
Sewers and Ditches dry concrete gunite machine

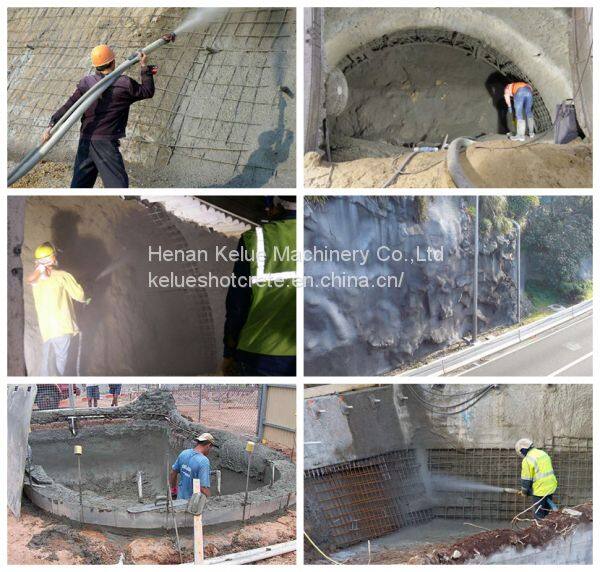

Sewers and Ditches dry concrete gunite machine is concrete or mortar conveyed through a hose and pneumatically projected at high velocity onto a surface,as a construction technique.It is reinforced by conventional steel rods, steel mesh,or fibers.
Shotcrete is usually an all-inclusive term for both the wet-mix and dry-mix versions.
Shotcrete is placed and compacted at the same time, due to the force with the nozzle. It can be sprayed onto any type or shape of surface, including vertical or overhead areas.

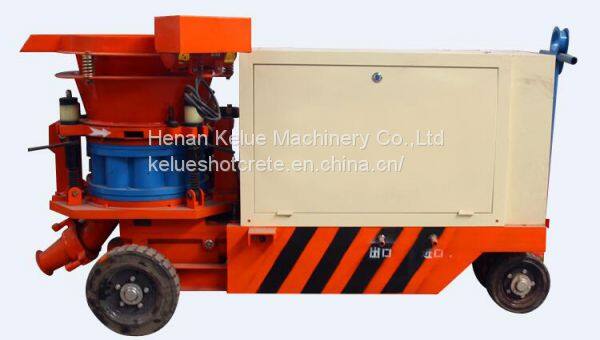

Sewers and Ditches dry concrete gunite machine
1. No blocking
2. Dustless.
3. Low rebound rate.
4. Components durable.
Sewers and Ditches dry concrete gunite machine
Model no | PZ-6 | PZ-7 |
Applicable materials | Dry concrate | Dry concrete |
Flow | 6m3/h | 7m3/h |
Pressure | 0.2Mpa-0.4Mpa | 0.2-0.4Mpa |
Power | 5.5KW/380V | 7.5KW/380V |
Voltage | 380V | 380V |
Transmission distance | 200M | 200M |
Transmission height | 20M | 20M |
Maximum aggregate size | 20mm | 20mm |
Outlet diameter | 51mm | 57mm |
Weight | 600KG | 850KG |
Dimension | 1520*820*1280MM | 1600*900*1370MM |
Water:ash | ≤0.4—0.45 | ≤0.4—0.45 |
Cement:stone | 1:3~1:5 | 1:3~1:5 |
Loading height | 1.1M | 1.1M |
Air consumption | 8-10m3/min | 8-10m3/min |

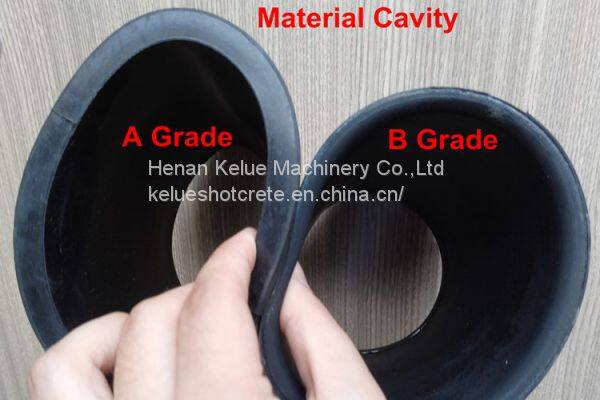

Sewers and Ditches dry concrete gunite machine
Sewers and Ditches dry concrete gunite machine
Sewers and Ditches dry concrete gunite machine
1.Lead time:3-7 days after payment, bulk order check with Monica.
2.Price term:EXW,FOB,CFR,CIF.
3.Payment term:T/T,irrevocable L/C at sight,Trade assurance.
If we have stock,100% T/T before delivery.
If bulk order no stock,30% T/T before production,70% T/T before delivery.
4.Delivery:Normally by sea.
If it is really urgent,air shipment or international
express (DHL,UPS,TNT,FEDEX)also workable.
We can arrange according to your request.

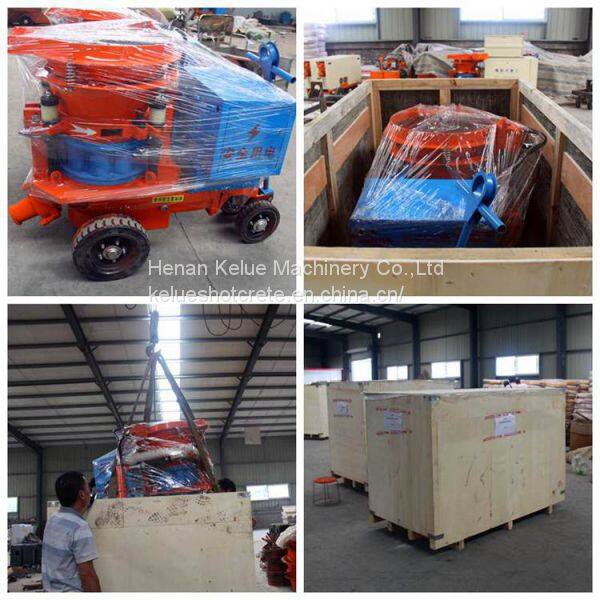

5.Packing:Wooden case
6.Warranty:12 months without wearing parts.
Sewers and Ditches dry concrete gunite machine
Sewers and Ditches dry concrete gunite machine
