High alumina ceramic tile brick factory price
- 1000 Ton / Tons per Month
- qingdao,shanghai
- T/T L/C D/P D/A Credit Card Other
- 10 days
You May Like
-
High alumina brick suppliers China for ball mill
-
High alumina brick product for ball mill grinding
-
High alumina brick for ball mill grinding manufacturer in China
-
White ceramic brick tiles brick with high wear resistance
-
Heat resistant ceramic brick tiles for ball mill grinding
-
High wear-resistant ceramic brick for sale manufactuers China
Product Details
| Brand Name | win-ceramic | Place of Origin | China | |
| Model Number | 690912 | Type | Ceramic Plates | |
| Application | Industrial Ceramic | Material | Alumina Ceramic |
Product Description
| Application | 1.Used as wear-resistant inner lining of ball mills and pipes. 2.It’s the perfect solution for protecting grinding ball mills from wear without any routine maintenance |
| Chemical composition and physicaproperties | |
| Performance Index | 92Series |
| Al2O3 | >=92% |
| Fe2O3 | <=0.02 % |
| Compressive strength(Mpa) | >=2000 |
| Hardness mohs | >=9 |
| Volume density(g/cm3) | >=3.60 |
| Water absorption(%) | <=0.01 |
| Equivalent abrasion(‰) | Equivalent abrasion(‰) <=0.1 |

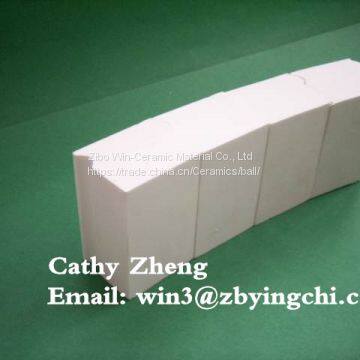

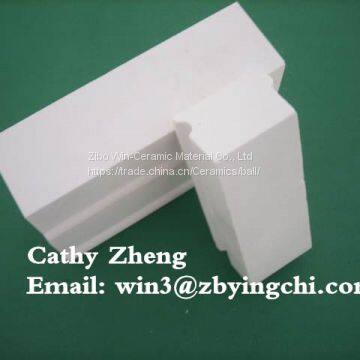

Wear Resistant High Alumina Lining Brick Dimension
Name | (L)mm Length | (W1) Width | (W2)mm Width | (H)mm Thickness |
rectangle Brick | 150 | 50 | 50 | 40/50/60/70/80/90 |
trapezoid Brick | 150 | 45 | 50 | 40/50/60/70/80/90 |
Half rectangle Brick | 75 | 50 | 50 | 40/50/60/70/80/90 |
Half trapezoid Brick | 75 | 45 | 50 | 40/50/60/70/80/90 |
Flake Brick | 150 | 25 | 25 | 40/50/60/70/80/90 |
The goods are dispatched in strong carton with seperate paper card as buffering, palletised and shrink-wrapped for better conservation,being prepared for their immediate delivery.
Normally the standard package is 15-25KG/carton, 1-1.5tons/pallet, 20-25tons for 20'container
Zibo Win-Ceramic Material Co., Ltd., located in Zibo city, Shandong province, provide excellent abrasion and impact resistance for Mining and Industry applications, focusing on the development of wear-resistant alumina ceramic brick,tile, ball etc. With more than ten years experience and 200 high skilled workers ,we produce more than 2000 tons alumina ceramic and related products per month.
Export to more than 15 countries in Europe,the Middle East,Southeast Asia,Africa,South America and areas etc
