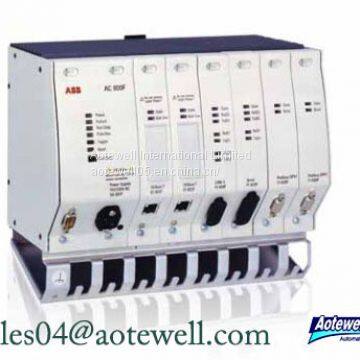

The ABB DCS AC 800F controller distributes process and diagnostic data from four fieldbus gateways. If required, it can also work with various fieldbus types – and this
is, of course, in addition to the usual tasks of a “conventional” controller. Thanks to its compact and sturdy design, the AC 800F is suitable both for installation in the control room and for use in junction boxes directly in the field.

AC 800F offers new possibilities, combining “easy engineering” with an open and modern system architecture:

·          Availability: Redundancy at all levels

·          Freedom of Choice: PROFIBUS, FOUNDATION Fieldbus or HART; or combinations of those protocols

·          Efficient Engineering: Support for FDT/DTM

·          Only one tool for engineering, commissioning and diagnositics

·          Asset Optimization and batch processing

·          System engineering covers fieldbus and device configuration

·          On-board web server for remote diagnostics

AC800F Part No.ParametersIN STOCKFIELD CONTROLLER MASTER UNITCheck StockPM802FInclude rack , CPU,8MCheck StockPM803FInclude rack , CPU,16MCheck StockPOWER SUPPLERCheck StockSA811FField control equipment 220VAC-24VDCCheck StockSD812FField control equipment 24VDC-24VDCCheck StockEthernet moduleCheck StockEI811F10Base2 ModuleCheck StockEI812FAUI ModuleCheck StockEI813F10Base T ModuleCheck StockOther communication moduleCheck StockFI810FCAN ModuleCheck StockFI820FModbus ModuleCheck StockFI830FProfibus-DP V1 ModuleCheck StockFI840FFF ModuleCheck StockAccessoryCheck StockTK807FSA801F/SA811F service cableCheck StockTK808FSA801F/SA811F service cable,Eur standard plugCheck StockTK809FSA801F/SA811F service cable,USA standard plugCheck StockTK802FSD802F service cableCheck StockTK821FSerial interface communication cable,0.5mCheck StockTK831FCAN communication cable,0.5mCheck StockTK811FCAN communication cable,3mCheck StockTK817FCAN communication cable,100mCheck StockTK890FDiagnosis cable 5mCheck StockTK891FDiagnosis cable 10mCheck StockTB870FCommunication wiring boardCheck StockAM811FBattery moduleCheck StockAM895F(4)Front panel(4pcs in one bag)Check StockSB808FRAM back up battery (for EI8**Fmodule)Check StockSY809FBattery stentsCheck Stock

The ABB AC 800F has a modular structure. The AC 800F CPU is designed as a backplane to which various modules – power supply units, Ethernet or fieldbus modules – can be attached in line with the application. On the fieldbus side, modules for PROFIBUS-DPV1, FOUNDATION Fieldbus HSE, MODBUS (master/slave, RTU or ASCII), IEC 608 0-5-101 and CAN for Freelance Rack I/O are available. The fieldbus line and the connected PROFIBUS slaves are entirely configured and parameterized using the Control Builder F engineering tool. No further external tools are needed for configuration. PROFIBUS slaves can be integrated into the system using a GSD) file or FDT/DTM). In the case of FOUNDATION Fieldbus, configuration takes place using CFF or DD files. This allows fieldbus parameterization even without connected field devices.

Also Freelance Rack I/O can be connected to the ABB AC 800F, in which case a CAN module is used. This allows you to operate five I/O racks, with a total of around 1000 I/Os, for each AC 800F. The I/O racks are equipped with a link module and up to nine I/O modules and can be mounted separately at a distance of up to 400 m from the AC 800F.
