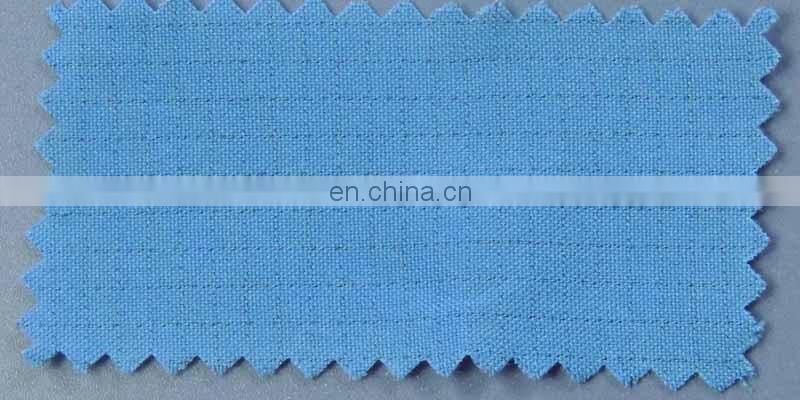

Antistatic ESD Fabric With Polyester or Cotton

Model:TC-G5T
Idea for making different styles of ESD Cleanroom garment, ESD cleanroom covers,etc.

Specification

 • Material: 64% Polyester + 34% Cotton + 2% conductive fibre
 • Size: Width 1.5m * Length 130m/roll
 • Standard Weight: 150g/sqm
 • Pattern: 5mm Grid
 • Color: White, Blue, Green, Yellow, Pink, etc.
 • Yarn Count: 1/2 twill
 • Technics: Knitted
 • Knitted Type: Weft
 • Surface resistance: 1x106-1x109Ohm/sq
 • Static decay time: <0.17 sec.
 • Permeability to air: 15cm3/cn2/sec
 • Life more than 60 Repetitive Washings
 • Applying cleanroom: 100-10000 Class
 • Fabric electric charge density: ≤3uc/m2
 • Bearing pull  29.4 N(newton)
 • Complies with EN 61340-5-1
 • Suitable to male and female. The material is made from ester fibre with filament and imported conductive fibre
 • Area of static and sensitive, clean and purification area of C10-C10000
 • Effective removing the static from human body, and antistatic permanent

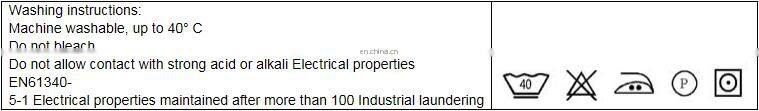

Electrical properties:

 Carton Size: 1.55m*30cm*30cm

 1 roll/carton
