High Productivity Agricultural Chip Crusher Machine Heavy Duty

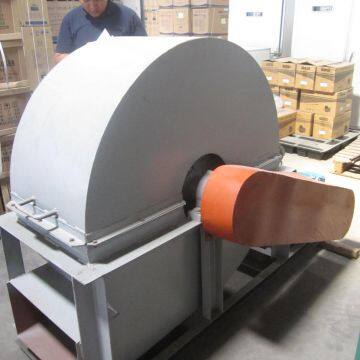

Brief introduction of the high crushing ratio wood crusher

The wood crushing machine, is particularly used to produce wood power and sawdust, which is one equipment of our wood crushing series as well as the high efficient wood processing equipment. There are 6 models of sawdust machines made by our company and these sawdust machines is widely used in the process of middle or small wood shaving board and fabric board's preparation.

Wood crusher is used to grind the waste wood into small wood particles or wood powder. Final product size could be adjusted according to change the seive.

There are different type wood crusher:

1, wood crusher with 3-4 cutters and 12-16 hammers, normal type for logs and wood branches;

2, wood cursher with only hammers, while many hammers, which is mainly for the waste wood board;

3, multifunctional wood crusher with two feeding port for wood branches, logs and waste wood board.

Features of wood crusher machine

 1: it has 3 feeding hopper in one machine , separately for : big wood , bamboo ,  another for grain grinding ,  and the left one used for small size braches ,corncob, and  agriculture waste

2.crushed /grinded size can be adjusted by changing the screen inside according to need , can be 0.2-10mm

 3. Use one motor to save energe , also can save  working place to have all function in one

 4. Can be driven by electricity or by diesel engine

Advantage of wood crusher

1.This machine can be a variety of wood, wood waste, branches with branches, wood chips, boards edge material once processed into sawdust, bark, bamboo, bamboo, leather and other raw materials, wood-like product, with less investment, low energy consumption, productivityhigh, good economic returns, easy maintenance advantages.

2.After the small particle size of crushed sawdust, wood wool fibers, uniform material. Equipment package only driven with an electric motor, the structure is simple, compact layout, the price is cheap, stable, low energy consumption, high output, sawdust finished good quality and low processing cost. Bamboo, grass, corn stalks, sorghum stalks and other fibrous stalk-like materials can also be used for the chips.

3.The sawdust machine also can be a high particle board, sawdust board MDF raw materials used in the production

4.the wood crusher machine is composed of machine body, knife chipping part,

chips re-crush part and sieving part ,ect.

5.It combines both chipping and crushing in one machine, can make sawdust in one

passage, no need to use wood chipper for preprocessing of wood logs.

6.To ensure security, the feed inlet of this crushing equipment adopts self-sction design to avoid serious damage to operators.

Description

1,It is used for grinding of small wood blocks, chips before pelleting;

2,Multi grinding chamber to increase efficiency by 15%;

3,Multi grinding chamber to prolong service life of screen and beater;

4,Modified rotor to increase stability and avoid overheating from the bearing;

5,Modified screen locking device to make assembling &disassembling easily;

6,Unique structure design of door to absorb shake and reduce noise;

7,Modified design for grinding chamber to reduce airflow resistance and increase efficiency;

8,Depress barycenter of rotor to make more balanced and coarse and fine grinding can be completed
