High Performance Diesel Ultrasonic Fuel Level Sensor for GPS Tracker,Fuel Oil Level Sensor RS232 port output no Drawing
- Shenzhen
- T/T PayPal Other
- 3 days
You May Like
-
High Resolution level measuring device non-touch measurement ultrasonic fuel sensor
-
Water Proof Integrated Distance Measuring Transducer Sensorultrasonic sensor for distance measurement
-
High resolution liquid water level sensorGPS tracking diesel fuel tank level sensor with GPS
-
Level Sensor Usage and Ultrasonic Sensor Theory noncontact ultrasonic liquid level sensor
-
DC9V-48V high accuracy ultrasonic fuel tank levelAnti-Fuel Theft Ultrasonic Fuel Level Sensor for Truck
Product Details
| Brand Name | HTD | Place of Origin | China | |
| Model Number | DS1309B |
Product Description

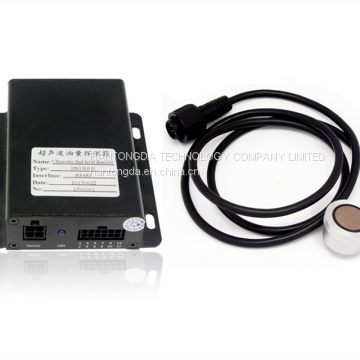

DS1309B is a ultrasonic fuel tank level sensor, featured with non-drill hole on tank by attaching to tank bottom. Easy installation and detecting most liquid (diesel, oil, water...) level with ultrasonic technology.
Features:
1) Measuring precision, measurement resolution is 0.1mm, liquid level measurement accuracy is 1mm.
2) Good stability; 3) Easy to install; 4) Simple application; 5) Strong antistatic ability (EMC);
6) Variety of standard signal output ways, which are analog voltage (1-5V) and current (4-20mA), digital output RS232 and RS485; 7) Alarm output;
Technical parameters:
Data Processor | |||
Operating Voltage | DC9V-48V | ||
Power supply ripple | Less than 100mV | ||
Operating current | Less than 30mA | ||
Measuring distance | 3cm to 100cm; | ||
Resolution | 0.1mm | ||
Measurement accuracy | 0.5% (see note 3) | ||
Temperature compensation range | -40 ℃- +80 ℃ | ||
Output mode: | |||
Analog output | Voltage output (default) | 1-5V (corresponding 0-100cm) | |
Current output (optional) | 4-20mA (corresponding 0-100cm) | ||
Digital output | RS232(default) | See the “communication protocol” | |
RS485(optional) | |||
Anti-theft alarm output | need external connection a alarming horn to achieve alarm | ||
Install method | bottom of fuel tank/can, water tank | ||
Material of tank/container | Iron,aluminum,stainless steel (see note 4) | ||
Thickness of material | Within 5.5mm | ||
Operating temperature | -40 ℃ - +80 ℃ | ||
Storage temperature | -50 ℃ - +100 ℃ | ||
