Golf Carts 54.6v Electric Bike Battery Charger 54.6V 2A 3A

FOB Price

US$ 27 - 28 / Piece

200 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

product description

Product Electronics Parameter
Product name	Golf carts 54.6v electric bike battery charger 54.6V 2A 3A
Model number	XSG5462000
AC input	Input Voltage range:	90~264Vac
	Reted input voltage:	100~240Vac
	InputFrequency Range:	47~62hz
	Input current max:	1.3A
	Inrush current:	35A Max/240V
	Efficiency:	>89%
	No load Input power	<0.21W
	Leakage current:	<0.25mA/240V
DC output	Max charging voltage:	54.6V
	Output voltage tolerance:	5%
	Max charging current:	0~2A
	Ripple and noise:	<120mVp-p
	Charging mode:	3- stage, CC,CV,trickle charging
	Cut off current when charged full	Optional
	LED indicator	Charging: Red, Charged full: Green
	Charging current when charged full	<250mA
Protection	Over current protection	PASS
	Over voltage protection
	Short circuit protection
	Over Temp protection
	Anti-flow protection
Environment	Operating Temp:	0℃~+45℃
	Storage Temp:	-30℃~+70℃
	Relative Humidity:	10%~90%
	Vibration and shock	Meet MIL-STD-810D
Safety	Safety standard	EN60950,EN61558,EN60335
	EMC/EMI	Meet FCC CLASS B,EN55022 CLASS B.
	EMS	EN61000-4-2
		EN61000-4-3
		EN61000-4-4
		EN61000-4-5
	A Harmonic source	Pass
	HI-pot: Primary to Secondary	3KVAC,5mA,60s
	Drop Test	As per UL regulation
	Burning test	100%,4-5 hours
Life	MTBF	50000 hours
Life	Warranty	3 years

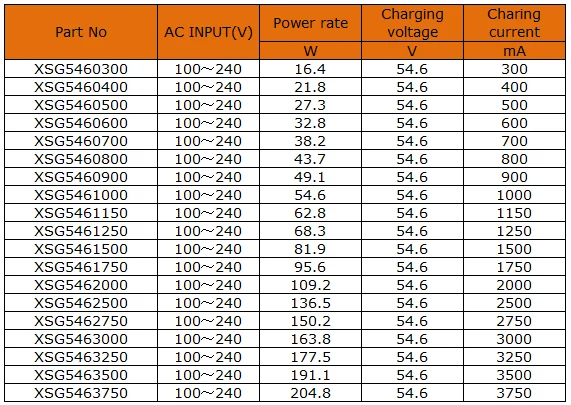

Model list

DC connecter

Certificates

Key components
