Falling Weight Impact Tester

Falling Weight Impact Tester

Model No.

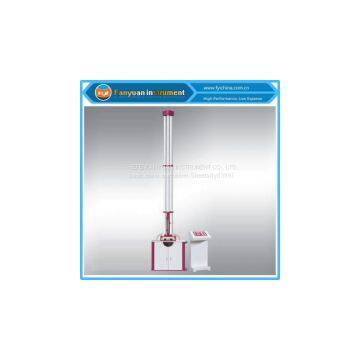

DW5351 Falling Weight Impact Tester

Application:

DW5351 Falling Weight Impact Tester is specially designed to determine the resistance to external blows of thermoplastic pipes and polymer test samples and components. It is suitable for PVC-U pipe, PVC-C pipe, PP pipe, PE pipe, communication pipeline, etc.

Related Standards:

Note: this Falling Weight Impact Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features:

l         LED display, long operating life;

2         Impact height can be adjustable within 50~2000mm;

3        Adopts imported servo motor control system, fast lifting device, high efficiency;

4         Automatically calibrate lifting height, calibration accuracy can be ±2mm;

5         Combined strikers, the striker weight can be assembled by different weights;

6         Pneumatic capture device for preventing second impact;

7         Combined vee-block, suitable for different specimen of different diameter.

Key Specification:

l         Striker weight                    0.250~15.00kg (increment: 0.100kg and 0.250kg), selectable

2         Striker radius                     12.5mm, 50mm, can be customized

3         Impact height                     50-2000mm±2mm

4         Specimen diameter                10-630mm

5         Power supply                     220V, 50Hz

6         Max. striker lifting speed            12m/min

7         Dimensions                       1100×570×3710mm (L×W×H)

8         Weight                           approx. 260kg

Standard configuration:

Optional Accessories:

Good service and quantity .

 A. We supply one year warranty and 12 hours service per day .

 B. Our skilled engineer can go to your company for installation service

 C. Our Falling Weight Impact Tester adopts top quality material including imported parts, most of the critical component are adopting first class brand .

 D. Our company passed ISO and have strict quality control before delivery goods

 E. We can customized and also supply OEM service

 F.. We also can supply different language user's manual . The

    user manual of Falling Weight Impact Tester can help you operate our machine easily.

 G ; we supply operation video if customer need it . .

 Payment and delivery :

A..We accept payment  such as TT , Western union, and L/C,DP etc . you can contact with us if you need

B. Normally we can delivery time in 3-4 weeks it depend on we have stock or not .

FAQ

 Q: Are your company a trading one or a factory?
A:Factory + trader , 30  years focusing on test instruments field

 Q What's about delivery time ?
A: Generally about 2-3 Weeks ,  If we have stock , we can arrange shipment within 3 days after re-tester in our factory , Some machine need customized. Deliver time is longer .

Q: What about the warranty with after - sales services?
A: The testing machine is guaranteed for 12 months by Hefei Fanyuan Instrument
of course .we can help you to repair your problem controller freely ,even it's not from our factory.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

 Q:What about  services and quality?
A:Each  Falling Weight Impact Tester  must be carried out 100% quality examination and test when shipping and delivery goods.
Each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer's company when you need.
our products are widely recognized and trusted by users.
