Brick and Block Machine

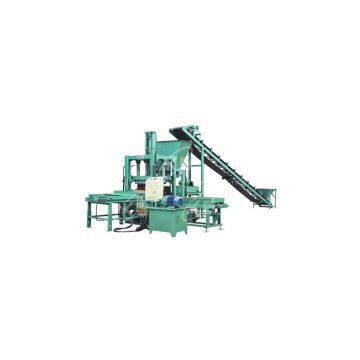

Brick and Block Machine KBQ4-32

1.Technical data

Model KBQ4-32

The molding cycle 25-32 seconds / time

Every time the molding blocks Standard brick and block; Block 4 block; Brick road 12 (with secondary cloth)

The installed capacity 13.5KW

The weight 3.5T

Dimension 4000 × 3500 × 2300mm

2. Feature

1. It adopts double levels of cloth, combines the vibration and pressing, and is with the double control on height and density. Thus, the products are firm, even and beautiful. In addition, the products would be also with the advantages of small occupying area, easy installation, convenient operation, rapid forming speed, low malfunction rate, convenient maintenance, etc. Especially, it's with most obvious merits of low investment and rapid effect.

2. For KBQ4-32 brick forming machine, by replacing the related mould, it could also be used to produce the burning-avoid brick, the multi-hole brick, the hollow brick, the colorful pavement brick, the lawn brick, the flower -wall brick, the slope protection, the road-edge brick and other different kinds of concrete products. The products would be widely used in the pavement, garden, hydraulic engineering projects, plaza, residential districts and so on ..

3. It's available to add quantities of fly ash, slag, cinder and other industrial waste into the raw material.IN addition, it's also possible to supply the half-automatic or automatic product line according to the user's requirements.
