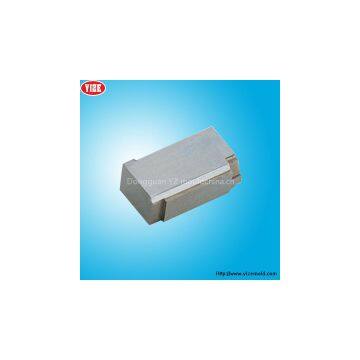

High quality precision stamping mould components

High quality precision stamping mould components

yizejiuyue01

Our service include:

Product name:stamping mould components

Product size: customization

Material:Japan(SKD11.SKD61.SKH51.S45C)

      USA(AISA.D2.H13.P20.M2)

      Germany(DIN.2379.2363.2344.2347)

      ASSAB(Rigor.Stavax.Impax.Elmax.ASP23)

Hardness:58-60 HRC

Grinding precision:0.001mm

Electric discharge processing precision:0.002mm

Precision stamping mould components is top in any normal circumstances can reliable product from the template side ejection,and when the mold is closed its associated ejection parts to ensure that no interference with other parts of the free to return to the original position.

1、The top out mechanism:in order to make the mechanism is simplified,easy processing,generally use the round rod.

2、The precision stamping mould components jacking mechanism:pipe jacking is generally located at the bottom of the cylindrical parts.

3、Push plate mechanism used in the rectangle.Precision stamping mould components products:deep circular cavity or thin wall and core with side concave convex or annular groove.

4、Sloping roof and a swing rod ejection mechanism:used for removing products,side concave or scoliosis has the advantages of simple structure,complex processing,apex oblique top surface should be less than the core 0.05-0.1MM has anti jection,products at the bottom on core block.Inclined sliding block should be between 5-10 degrees.Inclined sliding block should be between 5-10 degrees.The rotary demoulding mechanism:for with thread demolding,generally use the chain and gear drive with.

Welcome to figure offer,the price is for reference only, we have a professional considerate service to you.
