Home > Products > Spring Hammer Test Equipment > Universal Spring Hammer
Universal Spring Hammer
- T/T L/C D/P D/A
- 7 days
You May Like
-
IEC60068 0.14j Single Impact Test Hammer
-
2j Spring Operated Impact Hammer
-
IEC60335 Test Pans/Vessel for Induction Hob Element for Electromagnetic Oven Test
-
Hazardous Moving Parts Test Probe UL1310
-
UL1278 Fig.10.3 SM208 Triangle Probe
-
Test Finger Probe with Diameter 50 mm Circular Stop Face of IEC60335 20.2
Product Details
| Brand Name | Julixing | Place of Origin | China | |
| Model Number | LX-IK06 |
Product Description

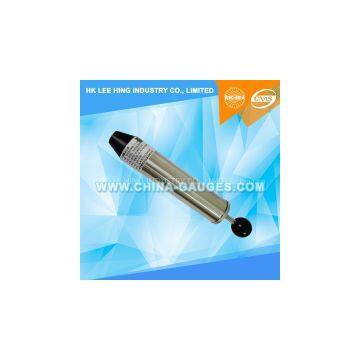

IEC60068-2-75 Spring-operated Impact-test Apparatus Universal Type
1. Reference to IEC60068-2-75
2. As Universal Type
1. Introduction:
(1) IEC60068-2-75 Spring Impact Hammer Test Apparatus is strictly designed according to IEC60068-2-75 standard.
(2)After applying the impact with the hammer, the products is examined with accessibility probes to determine access to chock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.
2. Application:
Adjust the impact severity by rotating the knurled cap until the desired energy-value is displayed. Pull the knob slowly out of the device until it locks in place. If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling-force declines. Hold the device horizontally at it’s housing tube and press the (black) release cone to the specimens plane of impact. The strike is automatically released when the release force threshold is reached
Universal (6 level): 0.14J, 0.20J, 0.35J, 0.50J, 0.70J, 1J adjustable.
Impact energy error0.14J ± 0.014J0.20J ± 0.020J0.35J ± 0.03J0.50J ± 0.04J0.70J ± 0.05J1.00J ± 0.05JTechnical parameters:Length: 211mmWeight: 1250gDiameter: 50 mmHammer Weight: 60gHammer radius: 10mm
Shock components: including hit ball and hammer handles, weighs 250g, the hammer is made from white polyethylene imine first
The impact of the release of force: less than 10N
