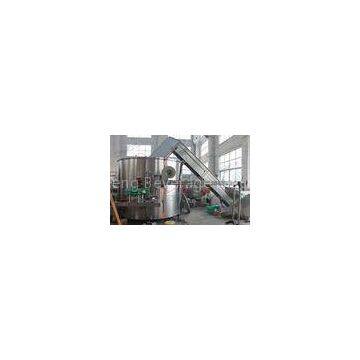

High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line

High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line

Quick Detail:

1, Capacity: 15000BPH

2, Automation: TOTALLY automatic

3, Material: SUS304

4, Bottle type: Plastic bottles

5, PLC control

Description:

1, The automatic bottle sorting machine is frequency control;

2,The automatic bottle sorting machine is using twice bottle pressing and bottle sorting construction;

3,There is mould changing window in the middle of framecase ,it is or mould change and jam clearance if any ;

4, There is bottle jam monitor on bottle-out planet wheel, it will protect machine;

9, There is bottle monitor on top of umbrella shape tower, it will control the start and stop of bottle elevator;

10, Coversed bottle will be eliminated from bottle-out planet wheel from he opposite position of air conveyor ;

Applications

The automatic bottle sorting machine is used to arrange disordered plastic bottle to production line. It can connect to different production line including mineral water line, food production line, dairy production line, medical production line and chemical production line and etc.

Working principle and diagram:

When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower ,and then fall into bottle ascending devices .The bottle ascending devices will push bottles into bottle dropping grooves under the action of cam . Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.

Specifications:

Electric components

Competitive Advantage:

1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project

Package & Shipment
