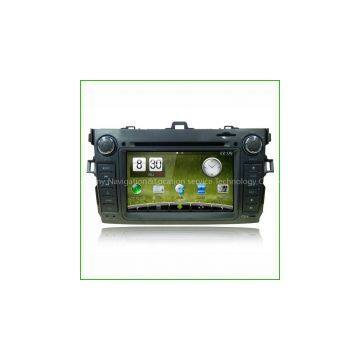

Newsmy 2din Car Dvd Gps DT3202S for Toyota 2012 Corolla CarPAD II 4core 7inch 800*480 HD Touch Android 4.4 Wince HiFi Wifi Radio,Car DVD Navigation,CAR DVD PLAYER,CAR RADIO,CAR DVD,CAR DVD PLAYER WITH GPS

Product Description

Universal Android 2 DIN car DVD player

Android4.1 + WinCE6.2 Dual OS

7inch Capacitive multi-touch Screen with 1024*600 Resolution

Without DVD, Without Can-bus box.

NEWSMY Android 2 DIN car DVD player

Operating System Android4.2 + WinCE6.2

Processor Quad-Core ARM A9 & ARM11 processor, quad-core processor Mali400

Frequency Android system frequency 1.6GHz,

Wince system frequency 800MHz

Memory Android system DDRIII 1GB @400MHz,

Wince system DDRII 256M@360MHz

Internal storage Android system 4GB NAND Flash+8GB SD card,

Wince system 512MB NAND+8GB TF card

Touch screen Multi point touch capacitive touch screen, Transmission rate > 90%

GPS module Ublox6M module

Accuracy positioning < 10 meters

Radio module Mitsumi high quality Radio module, can be stored 20 FM channel,

10 AM channel, can automatically search

RDS Support

DVD High quality automotive industry DVD

TV Optional

Language Chinese, English, Russia, French, Italy, Spanish, Finnish. etc.

Steering wheel control

Rearview/Early warning radar/

CAN-BUS/iPod Support ( optional)

Bluetooth module CSR( support Bluetooth phone book import function)

WiFi Support ( 802.11 b/g/n)

3G&Internet Support TD/WCDMA/EVDO 3G dongle(customer purchase)

Video decode Support 1080P Full HD video play

Audio decode Wolfson 5.1 channel HIFI audio codec IC, support 5.1 channel high fidelity sound

Power amplifier ST high power HIFI power amplifier module, 4 × 50W+ subwoofer output

Video input Support 1 channel video input

Video output Support 3 channel video output(CVBS), Remark: Split machine support 2 channel video output

Audio input Support 1 channel audio input

Audio output Support for 5.1 channel output + subwoofer output

USB OTG Support 2*USB+1*USB(mini USB), USB2.0(two for U disk /hard disk)&USB1.1(other for 3G dongle)

USB HOST Support 1*USB(can external U disk /hard disk / wireless keyboard and mouse)

HDMI Support 1*HDMI output

Infrared remote control Support (customers can customize any IR remote control to learning to use)

Button background light regulation Support(customers can customize the button background light to any color)

External Card Support TF Card & SD card (Maximum support 32G )

System file FAT, FAT32, NTFS, EXTFAT

Video formatAudio format:

Image format Full format

Multiple tasks Support background operation

Background image customizeBoot

Shutdown LOGO customize Support

Additional function Clock, for you to provide more humanized service

Operating temperature range -20~+70

Storage temperature 40~+85

Earthquake resistance 1.5G operation

GPS Sensitivity Capture - 145dBm, track -160dBm

Radio sensitivity FM5dBuv, AM: 27 dBuv

S/N > 85dB ( A weight )
