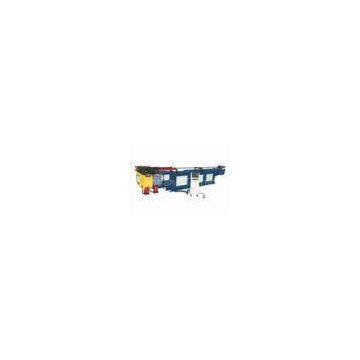

Mandrel Motorcycle Tube Bending Machine , Hydraulic Pipe Benders

Mandrel Motorcycle Tube Bending Machine , Hydraulic Pipe Benders

Quick Detail:

NC tube bending machine

Suitable for different material, carbon steel, stainless steel, aluminum, copper and so on

Using imported hydraulic system, electrics, servo motors, PLC and so on

Working fast and precisely

Description:

The?NC?series?tube?benders?(Pipe?Bending)?equipped?with?NC?control?unit.?

It?combines?easy-to-use?operation?with?high?bending accuracy?and?cost?effectiveness.?

It?is?the?practical?semi-auto-matic?solution?for?small?to?medium?productions.

Technical parameters

?The features of SB130NC are listed:

1. Using the microcomputer control, automatic bending;

2. Safety: the emergency stop button on the bending arm;
3. Dialogue operation, easy to study and understand;
4. Partition hypothesis speed, high pipe-bending precision up to ±0.15°;
5. 16 groups pipe-bending information storage, all angles work forms a coherent whole;
6. The mandrel automatically in and out, saving much time;
7. Suitable for bending steel pipe, stainless steel pipe, copper pipe, aluminum pipe, etc;
8. Can install auxiliary push die, low returning-core function, can bend thin pipes;
9. Special fitting: special mold, anti-wrinkle board, auxiliary push installation, etc.

Applications:

The machine SB130NC is widely used in the shipbuilding tube bending, chemical industry tube bending, bicycle tube bending, automotive tube bending, air conditioner tube bending, wire bending, car seats frame bending and some other industries.

Competitive Advantage:

The machine SB130NC has reasonable body design, which makes the bending space larger.

Stable hydraulic system ensures the machine working fast and free from hydraulic faults.

Important electric system makes more universality and accuracy.

Every part of the machine SB130NC is detected strictly before used.
