A53 Gr.B MSS SP-95 swaged nipple

Haihao High Pressure Flange&Pipe Fitting Group

GEE Pipe Mill Co.,Ltd

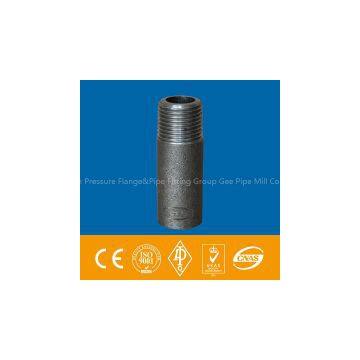

Product :A53 Gr.B MSS SP-95 swaged nipple

Size : Forged Fitting 1/8”,1/4”,3/8”,1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4”,6"

Pressure Rating : 2000LBS,3000LBS,6000LBS,9000LBS.

Standard

ASME,ANSIB16.11; JIS B2316; HGJ10;SHJ410 etc.

Material:Ansi WP304,304L,316,316L,316Ti,317,317L,321,321H

Type :

Elbow, Tee, Union, Cross, Cap, Bushing, Plug, Swage Nipple, Hexagon Nipple, Welding Nipple, Bend, Insert, Weldolet, Elbowlet, Sockolet, Thredolet, Nipolet, ,Half Couplings,Couplings Tube to Tube,Boss, etc.

Applications

Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc

Packing

Wooden cases,wooden pallet ,under the client's request

Dimensional Data (1/8" to 4" class 3000 & 6000 threaded)

Class 3000    1/8    1/4    3/8    1/2    3/4    1    1 1/4    1 1/2    2    2 1/2    3    4

B    3/4    3/4    7/8    1 1/8    1 3/8    1 3/4    2 1/4    2 1/2    3    3 5/8    4 1/4    5 1/2

D    15/16    1    1    1 1/4    1 7/16    1 5/8    1 3/4    1 3/4    1 7/8    2 3/8    2 9/16    2 11/16

Class 6000    1/8    1/4    3/8    1/2    3/4    1    1 1/4    1 1/2    2    2 1/2    3    4

B    7/8    1    1 1/4    1 1/2    1 3/4    2 1/4    2 1/2    3    3 5/8    4 1/4    5    6 1/4

D    1    1 1/16    1    1 5/16    1 1/2    1 11/16    1 13/16    1 7/8    2    2 1/2    2 11/16    2 15/16

Other Product range:

Steel elbow, tee, reducer, cap, seamless pipe, welded pipe

Payment term:

T/T:30% in advance, the balance before shipping; L/C, Western Union, Paypal and as per client's require.

Certificates passed:

ISO ABS API

Company Information:

Haihao Group is a modern private enterprise. Our Group was established in 1982. We are located in Mengcun—the hometown of Chinese pipe fittings. And we are the first and one of the biggest enterprise which produce both pipe fittings and steel pipes. There are 1600 employers, including 240 technologists. The Group covers 280,000 square meters and owns fixed assets 2,500,000,000 RMB. The output can be up to 1,180,000 tons and the annual output value is 980,000,000 RMB. Our products export to the East Asia, Europe, America, Africa and other twenties countries, in addition, we have good fame in Chinese pipe fittings. 　　

Gee products have four series: 1, High pressure flange and forged fittings; 2, the seamless /butt weld fitting with steel plate, for example, elbows, tees, reducers, bends,caps… 3, seamless steel pipe, ERW, SSAW pipe; 4, the nuclear project accessories. We also produce more than 3600 types pipeline accessories with 118 kinds of materials.
