GEE 1/2"-4" bsp thread pipe fittings half coupling SS304 316

Haihao High Pressure Flange&Pipe Fitting Group

GEE Pipe Mill Co.,Ltd

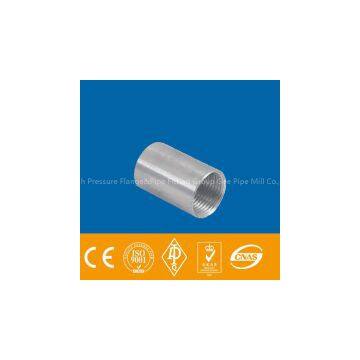

Product :GEE1/2"-4" bsp thread pipe fittings halfcouplingSS304316

Size : Forged Fitting 1/8”,1/4”,3/8”,1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,2-1/2”,3”,4”,6"

Pressure Rating : 2000LBS,3000LBS,6000LBS,9000LBS.

Standard

ASME,ANSIB16.11; JIS B2316; HGJ10;SHJ410 etc.

Material:Ansi WP304,304L,316,316L,316Ti,317,317L,321,321H

Type :

Elbow, Tee, Union, Cross, Cap, Bushing, Plug, Swage Nipple, Hexagon Nipple, Welding Nipple, Bend, Insert, Weldolet, Elbowlet, Sockolet, Thredolet, Nipolet, ,Half Couplings,Couplings Tube to Tube,Boss, etc.

Applications

Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc

Packing

Wooden cases,wooden pallet ,under the client's request

Dimensional Data (1/8" to 4" class 3000 & 6000 threaded)

Class 3000    1/8    1/4    3/8    1/2    3/4    1    1 1/4    1 1/2    2    2 1/2    3    4

B    3/4    3/4    7/8    1 1/8    1 3/8    1 3/4    2 1/4    2 1/2    3    3 5/8    4 1/4    5 1/2

D    15/16    1    1    1 1/4    1 7/16    1 5/8    1 3/4    1 3/4    1 7/8    2 3/8    2 9/16    2 11/16

Class 6000    1/8    1/4    3/8    1/2    3/4    1    1 1/4    1 1/2    2    2 1/2    3    4

B    7/8    1    1 1/4    1 1/2    1 3/4    2 1/4    2 1/2    3    3 5/8    4 1/4    5    6 1/4

D    1    1 1/16    1    1 5/16    1 1/2    1 11/16    1 13/16    1 7/8    2    2 1/2    2 11/16    2 15/16

Other Product range:

Steel elbow, tee, reducer, cap, seamless pipe, welded pipe

Payment term:

T/T:30% in advance, the balance before shipping; L/C, Western Union, Paypal and as per client's require.

Certificates passed:

ISO ABS API
