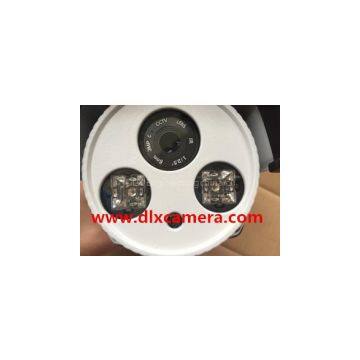

2Mp 1080p Hislicon3516 chip 3Mp Big Lens POE IP 2Arrays IR50M bullet camera

Features:

? Adopts Embedded RTOS design,32bit DSP CPU, Integrated high performance video encode accelerator, Super high performance RTOS

? Dual stream,Video code rate (64kbps-8Mbps) can be uninterrupted adjust

? Support video loss, Motion Detection, Probehead alarm

? Support TCP/IP, support IE browser/Android/Iphone etc.

? Support POE function

? Bi-direction audio,RS485,Alarm,USB,TF port, Analog video output port(BNC) etc optional

? Adopts double glass, the image more clear and bright

? Built-in double IR-CUT filter, No color deviation

? Adopts Long-life and SMART 2pieces big Epistar IR Arrays, IR range up to 50meters

? 6mm/F1.2 big Megapixel lens, 4mm,8mm,12mm,16mm/F1.2 or 25mm/F1.4 optional

? Aluminum housing, Weather proof,IP66

Specification:

Model

DLX-IBE2F20

Sensor

1/2.8" CMOS

Horizontal Resolution

2Mp


Signal System
PAL/NTSC

Lens
Fixed 6mm/F1.2 Megapixel lens (4,8,12,16mm/F1.2 or 25mm/F1.4 optional)

Min. Illumination
0LUX(IR ON)

IR
2pieces big Epistar IR Arrays, IR range 50M

BLC
Auto

WDR
Digital

AGC
Auto

Electronic shutter
1/50(1/60)s to 1/100,000s

S/N
>55dB

Gamma correction
>0.45

Ethernet port
1 RJ45 Ethernet port ,10/100M,POE

Video process
H.264 code, Dual Stream, AVI format, 64k~8Mpbs adjustable

Protocol
ONVIF, RTSP,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,UPNP,FTP,DDNS

Power
DC12V ±10%

Water proof
IP66

Material
Aluminum

Operating Conditions
-18 °C - 50 °C, Humidity 90% or less (non-condensing)

Dimension
150x105x80mm

Weight
650g
