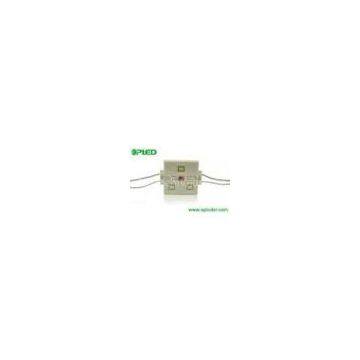

1.2W 5630 LED Module

Brand Name	OPLED		Place of Origin	China
Model Number	OP-7SM3838-3

Delivery Time:5-7days
Certification:CE,ROHS

Plastic 1.2W 5630 LED module White , rgb led sign lighting modules 3PCS

Model number:led injection module+ OP-7SM3838-3 Size: led injection module +38*38*5mm Material: led injection module +Plastic IP rate: led injection module +IP67 Certification: led injection module +CE/Rohs Application: led injection module + back light for sign

Quick Detail:

3pcs 5730smd led back light Part No.: OP-7SM3838-3 Working Voltage:DC12V Power: 1.2W/pcs Available color Red/yellow/blue/green/white/warm white Size:38*38*5mm IP rate: IP67 Viewing angle:120° Lumen:100-120lm Warranty: 2 years warranty Quick delivery: 5-7days Lifetime:80,000hrs Certificate: CE,Rohs Application: Back lighting for advertising signs,channel letters,light boxes,etc.

Description:

? Each module contains 3pcs SMD LEDs. Has wide viewing angle
? Super thin, only 5mm thick

? High intensity of each module, suitable for big & medium-sized LOGO & signage
??Perfect heat diffusion could prolong chips\' lifespan
? each strip is not more than 30 pieces if series connection is adopted
? with hole on both ends, can be fixed by screw
? Input: DC12V
? IP rate: IP67
? lifespan: 80,000hrs

Applications:

? Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements

? Ideal for small channel letter & lighting box with depth about 10-15cm.
? Edge lighting of transparent diffused materials
? large area back lighting
? Emergency / rescue signs

Specifications:

Model number	OP-7SM3838-3
Led type	5730smd
Led quantity	3pcs
Size	38*38*5mm
Material	Plastic
IP rate	IP67
Input voltage	DC12V
Current	100mA
Power	1.2W
Color	Warm White/Pure White/Cold White
Viewing angle	120°
Lumen	100-120lm
Working temperature	-20℃--60℃
Storing temperature	-25℃--80℃
Certification	CE/Rohs
Lifespan	80,000hrs
Warranty	2 years
Quick delivery	5-7days
Services	ODM/OEM is available

Lighting pictures:

Installation Instruction:

Packing details:

Packing	100pcs/bag,1000pcs/carton
Weight	17.2kg
Carton Size	47*30*30cm

Related products:

Production View:

Customer Feedback:

Team View:

OEM Sevices Tips:

FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples is not acceptable.

Q2: Do you have any MOQ limited?

A: Our MOQ EXW is 5pcs, Our MOQ FOB is 100pcs.

Q3: What’s the lead time?

A: Sample :1-5days.

?? Mass production: 7-10days.

Q4:How do you ship the goods and how
