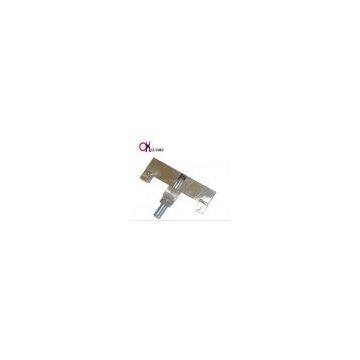

Side pressure Single Shear Beam load cell 2500kg (XBZ-B)

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	silvanus		Place of Origin	China
Model Number	XBZ-B

Dimensions(mm)

$\".jpg\"$

Specifications

Emax(Max. capacity)	Kg	500~2500
Sensitivity	mV/V	2.0±0.002
Accuracy class		D1	C2
Maximum number of verification intervals	nmax	1000	2000
Minimum load cell verification interval	Vmin	Emax/3000	Emax/2000
Combined error	%F.S	≤±0.05	≤±0.03
Creep	%F.S/30min	≤±0.05	≤±0.024
Temperature effect on sensitivity	%F.S/10°C	≤±0.05	≤±0.17
Temperature effect on zero	%F.S/10°C	≤±0.04	≤±0.015
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	150
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP66
Load cell material		Alloy steel
Cable length	m	1,5
Cable outer caliber	mm	Φ5

Features

Hermetically sealed

Max. Capacities :500~2500kg

Simple to install,easy to use,good interchangeability

Alloy steel,nickel plated,ideal for various hostile environments

Widely used in wire rope tension detection,crane hoisting weight limiter and other

weighing system

Application

Apply to electronic hook scales and various special weighing apparatus
