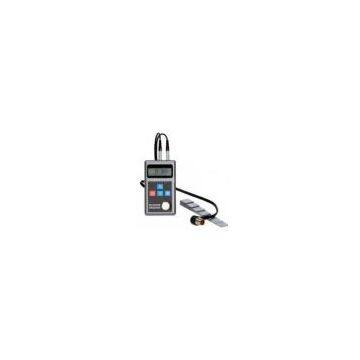

Ultrasonic Thickness Gauge DC2000B
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Description:
State of the art, digital Ultrasonic Thickness Testers are menu driven, multi-functional units offering everything from the basic measurement to extended memory and RS 232 output capabilities. This dynamic series of gages are designed to measure the Thickness of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, glass and any other good Ultrasonic wave conductor as long as it has parallel top and bottom surfaces. TheDC-2000B series gages will accurately display readings in either inch or millimeter after a simple calibration to a known Thickness or sound velocity.
Performance Parameters:
|
Display type
|
4-digit LCD
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum display unit
|
0.01"/0.01mm
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Measuring Range
|
0.04-8.0" in steel w/standard probe
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Display accuracy
|
0.001" / 0.01mm
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Sound velocity range
|
3280-32805 ft/s (1000-9999m/s)
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Operating temperature
|
32-122 degrees F
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency
|
5MHz
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Update range
|
4Hz
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Power supply
|
1.5v AAA alkaline batteries (2pc)
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Battery life
|
Approx. 250 hours/set
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Power consumption
|
Working current is less than 3V
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions
|
4-1/4 x 2-3/8 x 1"
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Weight
|
4.7oz
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Model No. DC-2000B: standard unit has measuring capabilities only
Optional Probes:
| |||||||||||||||||||||||||||||||||||||||||||||||
