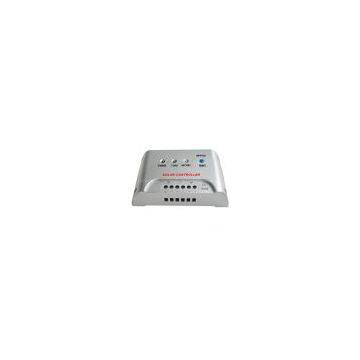

Solar power controller
- 100000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Wellsee | Place of Origin | China | |
| Model Number | WELLSEE WS-MPPT30 |
Product Description
Product features:
Applicable to various types of batteries,
MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration) ,
Thunder protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection
Model | WS-MPPT30 20A | WS-MPPT30 30A |
Rated Voltage | 12V / 24V / 48V | |
Max Load current | 20A | 30A |
Input voltage range | 12V~20V / 24V~40V / 48V~80V | |
Length≤1m Charge loop drop | 0.25V | |
Length≤1m Discharge loop drop | 0.05V | |
Over voltage protection | 17V / 34V / 48V | |
Full charge cut | 13.7V / 27.4V / 54.8V | |
Low voltage cut | 10.5~11V / 21V~22V / 42V~43V | |
Temperature compensation | -3mv/ °C/ cell | |
No load loss | ≤10mA | ≤20mA |
Max wire area | 4 mm2 | 4 mm2 |
Ambient temperature | -25°C---+55°C |
