YT27 Hand-held Rock Drill
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Bafang | Place of Origin | China | |
| Model Number | YT27 hand-held rock drill |
Product Description

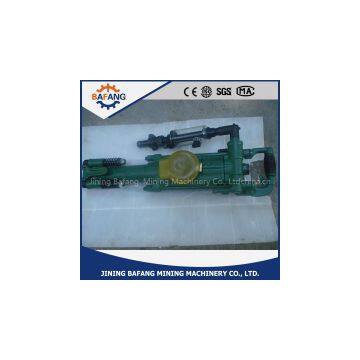

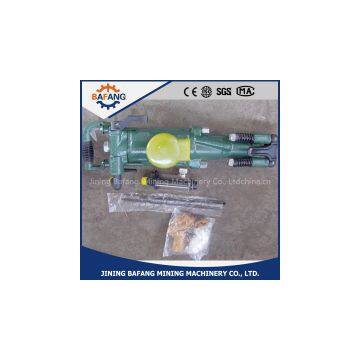

YT27 hand-held rock drill
YT27 hand-held rock drill is a rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, tunnel, railway traffic, water conservancy and so on. YT27 hand-held rock drill is suitable for hard rock, concrete (f=8~18) drilling, blasting, breaking works.
Product Introduction
YT27 hand-held rock drill is a rock drilling equipment with high efficiency. It is widely used in rock drilling. It's very important to coal mine, tunnel, railway traffic, water conservancy and so on. YT27 hand-held rock drill is suitable for hard rock, concrete (f=8~18) drilling, blasting, breaking works. Energy-saving and efficient, long service life of parts, parts highly interchangeable and reliable performance.
Technical Parameters
Type | YT27 |
Weight | 26 (Kg) |
Length | 668 (mm) |
Cylinder dia | φ80 (mm) |
Piston stroke | 60 (mm) |
Working pressure | 0.4~0.5 (Mpa) |
Impact energy | ≥70 (J) |
Impact frequency | ≥36 (Hz) |
Air consumption | ≤85 (L/s) |
Working water pressure | 0.2~0.3 (Mpa) |
Air pipe inner dia | φ25 (mm) |
Water pipe inner dia | φ13 (mm) |
Rock drill hole dia | φ34~φ42 (mm) |
Rock drill hole depth | 5 (m) |
Shank size | 22×108 (mm) |
