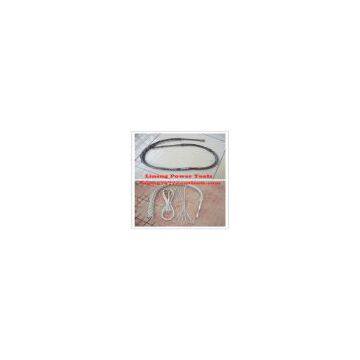

Cable Grips,Spring Cable Socks,Wire Cable Grips

Cable socks (also called cable grips ,cable stockings,pulling grips,support grips) provide a means of cable pulling into ducts, trenches .--

Cable socks are manufactured from high tensile galvanised and stainless steel wire rope,incudes

includes single eye cable socks, double eye cable socks, lace up cable socks, non-conductive cable socks and open ended cable socks,Single-head, single strand cable socks--

Specifications

1.cable pulling grip; mesh sock grip

2.Rated Load:2 tons,3 tons

3.Suitable diameter:50-125mm

Cable pulling grip; cable sock grip; cable stocking;pulling grips;

Application:used for cable hauling in power line construction;

Parameter:--

No. Applicable diameter Rated load Length

Scd-01 6-13mm 900 kg 300 mm

Scd-02 12-19mm 1590 kg 550 mm

Scd-03 19-25mm 2120 kg 600 mm

Scd-04 25-38mm 2560 kg 700 mm

Scd-05 7-12mm 300 kg 315 mm

Scd-06 13-18mm 400 kg 365 mm

Scd-07 18-24mm 600 kg 365 mm

Scd-08 25-35mm 700 kg 465 mm

Scd-09 35-48mm 1100 kg 535 mm

Scd-010 49-60mm 2000 kg 715 mm

Scd-011 60-75mm 2000 kg 830 mm

Scd-012 75-90mm 2500 kg 930 mm

Scd-013 90-115mm 2500 kg 1045 mm

Scd-014 110-135mm 3000 kg 1170 mm

Scd-015 130-150mm 3000 kg 1295 mm

Single-head, double strand cable socks--

No. Applicable diameter Rated load Length

Scs-01 10-20mm 1860 kg 600 mm

Scs-02 20-30mm 2256 kg 600 mm

Scs-03 30-40mm 3696 kg 600 mm

Scs-04 40-50mm 5490 kg 600 mm

Scs-05 50-65mm 5490 kg 600 mm

Scs-06 65-80mm 7320 kg 600 mm
