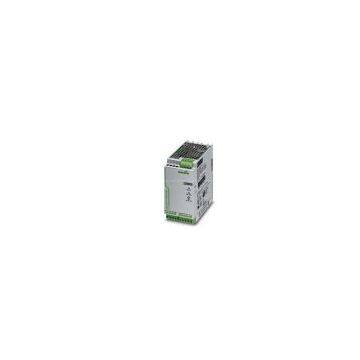

3-phase QUINT POWER power supply-2866792 QUINT-PS/ 3AC/24DC/20

Nominal input voltage

3x 400 V AC ... 500 V AC

AC input voltage range

3x 320 V AC ... 575 V AC

DC input voltage range

450 V DC ... 800 V DC

AC frequency range

45 Hz ... 65 Hz

DC frequency range

0 Hz

Current consumption

3 x 1.6 A (400 V AC)

3 x 1.3 A (500 V AC)

Approx. 2x 3.2 A (400 V AC)

Approx. 2x 2.8 A (500 V AC)

Inrush surge current

< 20 A (typical)

Power failure bypass

> 20 ms (400 V AC)

> 30 ms (500 V AC)

Permissible backup fuse

B6

B10

B16

Additional text

AC: 3 x circuit breaker - recommended fuse

Type of protection

Transient surge protection

Protective circuit/component

Varistor, gas-filled surge arrester

Nominal output voltage

24 V DC ±1%

Setting range of the output voltage

18 V DC ... 29.5 V DC (> 24 V constant capacity)

Output current

20 A (-25°C ... 60°C, U_OUT = 24 V DC)

26 A (with POWER BOOST, -25°C ... 40°C permanently, U_OUT = 24 V DC)

120 A (SFB technology, 12 ms)

Magnetic fuse tripping

B16

C6

Derating

60 °C ... 70 °C (2.5%/K)

Connection in parallel

Yes, for redundancy and increased capacity

Connection in series

Yes

Residual ripple

< 40 mV_PP (with nominal values)

Peak switching voltages nominal load

< 40 mV_PP (at nominal values, 20 MHz)

Maximum power dissipation idling

11 W

Power loss nominal load max.

40 W

Width

69 mm

Height

130 mm

Depth

125 mm

Width with alternative assembly

125 mm

Height with alternative assembly

130 mm

72 mm

Net weight

1.5 kg

Operating voltage display

Green LED

Efficiency

> 93 % (at 400 V AC and nominal values)

Insulation voltage input/output

4 kV AC (type test)

2 kV AC (routine test)

Degree of protection

IP20

Protection class

I

MTBF (IEC 61709, SN 29500)

> 500000 h
