Home > Products > Monitoring relay > 3-Phase Monitoring Relay (DPA51CM44)

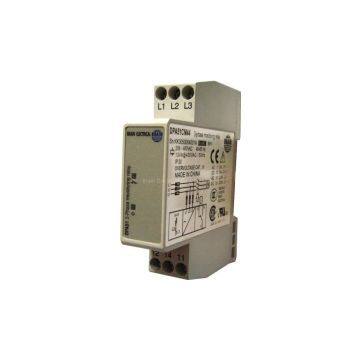

3-Phase Monitoring Relay (DPA51CM44)
- 1000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | BRAIN | Place of Origin | China | |
| Model Number | DPA51CM44B003;DPA51CM44B011;DPA51CM44B014 |
Product Description
Introduction
3-Phase relay for detection ofincorrect phase sequence, total and partial phase loss.
Supply range from 208 to 480VAC. For mounting on DIN-rail.
Housing 17.5 mm wide, SPDT relay output, suitablefor back and front panelmounting.
The devicedetects regeneratedvoltageup to 85% of the nominalvoltage (phase-phase).
Property
3-phase monitoring relay for phase sequence and phase loss
Detects when all phases are present and have the correct sequence
Measures its own power supply
Power supply range: 208 to 480 VAC (± 15%)
Output: 5 A SPDT relay normally energized
For mounting on DIN-rail in accordance with DIN/EN 50 022
17.5 mm DIN-rail housing (DIN 43880)
LED indication for relay and power supply on.
