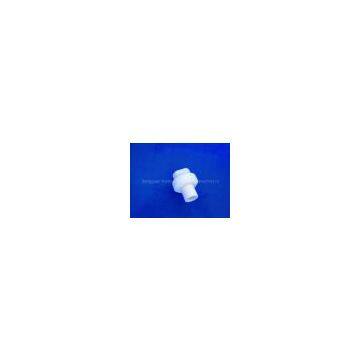

B2-1/2C-SS60,60 Nozzle,C Hollow Cone Nozzle

B2-1/2C-SS60,60 nozzle,C hollow cone nozzle

【YBS Nozzle】offer B2-1/2C-SS60,60 nozzle,C hollow cone nozzle and other products.Tel:86-0769-81609791

In the same working conditions, type B2-1/2C can spray full atomization than other full cone nozzle.Cast style offers the precision size.

Structural features single and dual- pressure hollow cone nozzle hollow cone nozzle

????Single hollow cone nozzle pressure , simple structure, good atomization quality on all types of combustion devices Pan application , although smaller than the range of fuel adjustment , once widely used in aircraft afterburner . Currently in the main combustion chamber and nozzle still work as a starter nozzle atomization device in the modular high-performance aircraft gas turbine engine nozzle as a towel heart . Also in the non-burning equipment, such as the pressure atomization spray drying equipment also uses one-way air pressure

Heart cone nozzle . The boiler furnace and the burner ( or burner ) which is also used . Structure in the form of a hollow cone nozzle dual pressures there are many , we are here to introduce dual single-chamber single- jet nozzle , dual chamber dual single jet nozzle , dual chamber dual dual spout nozzle three kinds of structural hollow cone nozzles. When the single-chamber single dual fuel nozzle orifice pressure below 1 ~ 1.5MPa, deputy oil duct work under high pressure main and auxiliary oil line while a swirl chamber for eight , with one from the spray nozzle . Nozzle of the kinds of programs in the early aviation engine uses , such as J47, E300, AH20, P45 , etc. . Dual dual-chamber single jet nozzles, also called tandem dual nozzles. The program 's deputy oil line nozzle back pressure of main oil is small, but from the main oil

Just started working for the incoming fuel pressure is low, the oil fuel can not be driven by the rotation of vice , not as good as the quality of its single-chamber single atomization spray nozzle . On the aero-engine combustion chamber only P-96, P-3M uses too . Dual dual-chamber double orifice nozzle , also known as parallel dual nozzle , they have their own swirl chambers and nozzles , main and secondary fuel oil line will not be channeling each other , do not interfere with each other and the impact of changes in oil supply . But there are abundance of the oil atomization quality is poor when just starting work, the problem is to increase the pressure of measures to address the main oil line when open.

Ordering information of B2-1/2C-60 hollow cone  nozzle(One-piece cast-type) (YBS brand)

Thread: B=BSPT

Materials：None=brass

                 I=cast iron

SS=316 stainless steel

2-1/2 B2-1/2C-60 B2-1/2C-I60 B2-1/2C-SS60

B2-1/2C-70 B2-1/2C-I70 B2-1/2C-SS70

B2-1/2C-80 B2-1/2C-I80 B2-1/2C-SS80

B2-1/2C-90 B2-1/2C-I90 B2-1/2C-SS90

B2-1/2C-100 B2-1/2C-I100 B2-1/2C-SS100
