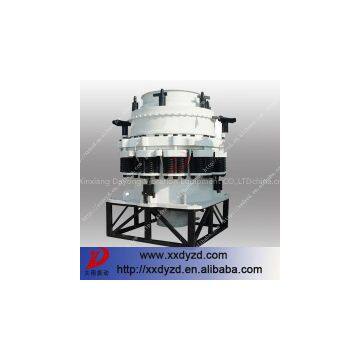

supply cone crusher

Features of cone crusher

1.Mantle and concave are made of manganese steel, which is durable for crushing hard stones and save cost.
2.Oil sealing system can prevent the dust into working parts(main shaft) to reduce the frequency of maintenance and prolong service life.
3.Hydraulic cavity clear-up system minimize the shut-down time and guarantee the efficiency.
4.Thin oil lubrication station is outfitted with air-conditioning cooling system to cool down the main shaft for better performance.


Working principle

Fragmentation process is scheduled to cone liner and eccentric movement between the fixed cone lining completed. Motor through V-belt and pulley to drive the crusher horizontal axis, the horizontal axis through the gear transmission to drive the eccentric sleeve rotation. Eccentric drive sleeve taper spindle to move into a rotary pendulum movement, resulting in the dynamic cone eccentric swing and fixed cone lining lining produce periodic relative movement between, so that materials to be broken in the crushing cavity constantly being squeezed and the bending has been broken. To be broken material from the upper feed port into the broken machine, broken material from the crusher discharge the lower discharge port.


Application

Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry.It can be used to crush hard and medium hard minerals. It is suitable for crushing granite,lava rock, feldspar, quartz rock, feldspathoids, basalt,limestone,river stone,rubble stone,marble rock,cobble stone pebble stone, pyroxenes,amphiboles, mica rock, coal barite, calcite, aragonite, dolomite, gneiss, schist, quartz,
silica sand,sandstone, slate, phosphate rock, gypsum construction aggregate(sand & gravel iron ore, iron oxide,copper ore,manganese ore,chrome ore,gold ore, zinc-lead ore, uranium ore, bauxite ore, nickel ore slag and so on.


Technical parameters

Model     Diameter of Cone (mm)     Max Feed Size (mm)     Output Range (mm)     Capacity (t/h)     Power (Kw)     Weight (t/h)     Dimension (mm)
PYB-900     900                     115                   15-50                   50-110        55                10.8     2692*1640*2350
PYZ-900     900                     60                    5-20                    20-65        55                10.8     2692*1640*2350
PYD-900     900                     40                    3-13                    15-50        55                10.9     2692*1640*2350
PYB-1200     1200                     145                   20-50                  110-200        110                  25     2790*1878*2844
PYZ-1200     1200                     100                    8-26                   50-150        110                  25     2790*1878*2844


If you are interested in our products,pls email or call us.

Tel:86-373-3669003  Fax:86-373-3669006  Skype:xinxiangdayong06

Welcome to visit our factory and look forward to your cooperation !
