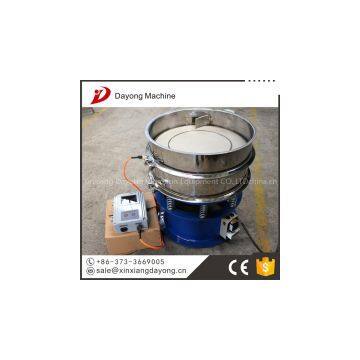

ultrasonic vibrating screen

Ultrasonic vibrating screen

Company profile
Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design , development , manufacture.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We insist on focusing on the leading advanced technology of screening and filtering.and are good at the design and production of vibratory screening machines.


Usasge
The product is applicable to any powder, granule, liquid screening and filtering of the industry. DYC series rotary vibration screen is widely used in chemical industry, medicine powder, liquid, paint, pigments, cosmetics, oil, resin, ceramic slurry, clay slurry, lime, refractory powder at the end, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, MSG, spices, milk powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate, help solvents, fire extinguishing agents, as well as the environmental protection industry wastewater, wastewater treatment process of screening, filtering.


Features and fuctions
1.Disassemble the adhesion objects and reduce the objects on the sieve.
2.Reliable operation, long life expectancy.
3.Low electricity consumption and low noise.
4.Simple structure, convenient installation and light weight;
5. Can be used as the corollary equipment of stone crusher


Work principle
An ultrasonic energy converter added to the common screening machine can produce the ultrasonic frequency to make the screen vibrate continuously based on the low frequency vibration caused by the electric motor. Thus the oversize particles are forced to upspring and the adsorptive materials are broken up, at the same time, the ultrasonic vibration can be conducted thoughout the whole screen net by the net wire to prevent the mesh from being plugged to realize a better screening.


Technical parameters
Model    Power    Sieving diameter     Effective area (m2)    Volum (mm)
DYC400-1S    0.18    320mm    0.0804    580*580*560

Model    Power    Sieving diameter     Effective area (m2)    Volum (mm)
DYC600-1S    0.55    550mm    0.2124    800*800*680

Model    Power    Sieving diameter     Effective area (m2)    Volum (mm)
DYC800-1S    0.75    750mm    0.4072    900*900*780

Model    Power    Sieving diameter     Effective area (m2)    Volum (mm)
DYC1000-1S    1.5    950mm    0.6221    1160*1160*880

Model    Power    Sieving diameter     Effective area (m2)    Volum (mm)
DYC1200-1S    1.75    1150mm    0.9331    1360*1360*980

If you are interested in our products,pls email or call us.

Welcome to visit our factory and look forward to your cooperation !
