testing vibrating screen

Company profile

Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design , development , manufacture.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We insist on focusing on the leading advanced technology of screening and filtering.and are good at the design and production of vibratory screening machines.


Application

Widely used in metallurgy, powder, chemical, medicine, building materials, geology, and national defense scientific research and production departments, laboratories, quality control rooms, institutions of higher learning lab, on the granular, powder particle size structure of materials, liquid type solids content and the amount of debris vibration screening, filtering, standard test sieve test


Features and Fuctions

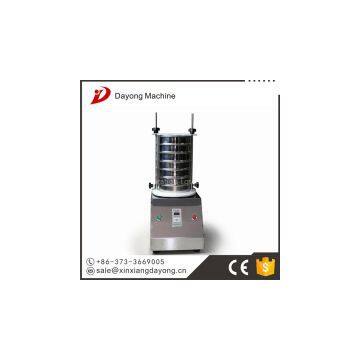

1.Test vibrating screen for lab use

2.Particle distribution analysis

3.Used in medicine, food, Chemicals.Minerals.Pharmaceuticals

4.Rapidly replace the screen

5.Standard Screen, ensure the high precision filtration

6.Timer for setting as required


Work principle

Laboratory vibrating screen with new vertical vibration motor as vibration source,vertical vibration motor on both ends with partial heart heavy hammer.Generating a horizontal , vertical , inclined three-dimensional motion.Vibration force is passed through the screen frame chassis standard sieve box and materials toachieve excellent classification .


Technical parameters

Items                  Name             unit                  Data
One                    Layers           Layer                 1~8
Two                    Diameter         Mm                    Φ200Φ100Φ75
Three                  Granularity      Mm                    0.038-3
Four                    Noise           DB                    ≤50
Five                   Feeding
                       capacity
                       (once)           G                     ≤200

Six                     Amplitude       Mm                    ≤5
Seven                   Voltage         V                     220
Eight                   Speed           R/min                 1420
Nine                    Power           Kw                    0.125
Ten                     Overall
                        dimension       Mm                    360×300×736
Eleven                  Weight          Kg                    25


If you are interested in our products,pls email or call us.
Tel:86-373-3669003  Fax:86-373-3669006  Skype:xinxiangdayong06
Welcome to visit our factory and look forward to your cooperation !
