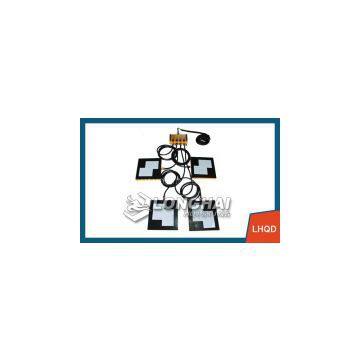

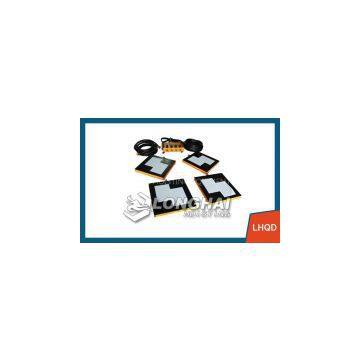

Air Caster Move INJECTION MOLDING MACHINES Moving Kit CHINA

Air Caster move INJECTION MOLDING MACHINES Moving Kit CHINA

Air Caster move INJECTION MOLDING MACHINES Moving Kit also called air caster, air powered moving casters, air bearing casters, air roller skates, air rollers, air moving skates, Air Powered Heavy Load Moving Equipment Systems,, air casters rigging systems and so names.

Air Caster move INJECTION MOLDING MACHINES Moving Kit-LHQD ,a kind of pneumatic device which can form a lubricating film of air between the load and floor surface,used to move heavy equipments on flat, non-porous ground.

Air Caster move INJECTION MOLDING MACHINES Moving Kit-LHQD applicable scope:

Air Caster move INJECTION MOLDING MACHINES Moving Kit-LHQD handling equipment under clean environment [clean room, clean room dedicated]

Air skates move equipment-LHQD moving on the ground Epoxy

Air Caster move INJECTION MOLDING MACHINES Moving Kit-LHQD handling equipment comes into play when the device [precision equipment

Air skates move equipment-LHQD features:

Due to the small friction, low traction or thrust required to move;

Good air truck motor performance, accurate positioning;

Air skates move equipment-LHQD on the ground friction is small, can be well protected ground;

Air Caster move INJECTION MOLDING MACHINES Moving Kit-LHQD and maintenance simple, good safety performance;

Air Caster move INJECTION MOLDING MACHINES Moving Kit-LHQD can be shipped according to the weight and volume of objects in combination, for large and small weight of transport;

Shockproof, non-polluting, can be demanding on the environment (such as: pharmaceutical, biochemical plant, clean room) occasions;

Air skates move equipment-LHQD can be combined volume size, light weight, easy to carry or install;

Can be used alone, without jack, hand destroyed the top of the tie.

Brand:LONGSHENG

Model:LHQD

Load:10-48T

Warranty:12 months

Air skates move equipment-LHQD technical parameters:

Model Capacity Quantity

of

Air Cushion Size

of

Air Cushion Main Material

of

Air Cushion Height

of

Air Cushion Main Gas

Supply Flow Pressure Main Pipe

Length Vice Pipe

Length Net Weight

of

Each Air Cushion

(T) (L×W×H,mm) (mm) (m3/ min) (kg/cm2) (m*quantity) (m*quantity) (kg)

LHQD-10-4 10 4 380×380×50 Aluminum  6061 40 >3 7 30*1 6*4 8.5

LHQD-16-4 16 4 485×485×50 Aluminum 6061 40 >3.5 7 30*1 6*4 13

LHQD-20-4 20 4 540×540×50 Aluminum 6061 40 >4 7 30*1 6*4 17.5

LHQD-32-4 32 4 686×686×50 Aluminum 6061 40 >5.5 7 30*1 6*4 21

LHQD-48-6 48 6 686×686×50 Aluminum 6061 40 >10 7 30*1 6*6 21
