Home > Products > New product > membrane switch

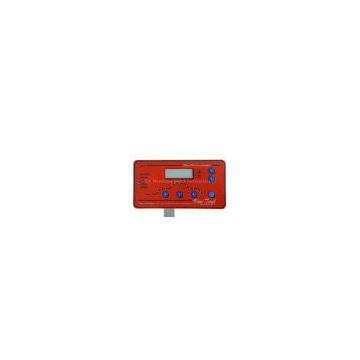

membrane switch
- 50000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | OEM |
Product Description
|
mbrane switch panel |
|
membrane switch panel Overlay Materials: The most commonly used base materials are polyester and polycarbonate. Rear Adhesive: 3M 467MP, 3M 468MP, etc. Standard Tolerances: .010 inch. Matching color: Pantone and RAL color matching system. Environmental · Storage Temperature: -40°C (-40°F) to +70°C (158°F). · Storage Altitude: Sea level to 35,000 feet. |
Performance
Electrical
Operating Voltage: 0-35 V DC.
Operating Current: 100 MA Max.
Operating Contact Resistance: Less than 100 OHMS typical
Contact Bounce: Less than 5 Milliseconds typical.
Conductors: Printed silver conductive inks or carbon blend.
RFI and ESD Shielding: Available in most configurations.
Mechanical
Life Expectancy: 1,000,000 actuations per switch position
Actuation Force: 6-24 ounces, Range depending on customer specification.
Switch Travel: .005" to .030" typical.
Overall Thickness: .020" to .050" typical.
Environmental
Storage Temperature: -40°C (-40°F) to +70°C (158°F).
Storage Altitude: Sea level to 35,000 feet.
Operating Temperature and Altitude: -30°C (-30°F) to +75°C (170°F). Can be designed to operate in most environments.
Humidity: No delamination after 24 hours at 80°C and 90%RH.
Contact Us
- Cixi Membrane Switch Factory
- Contact nameSunny wu Chat Now
- Phone86-574-63883209
- Address, Rizhao, Shandong
