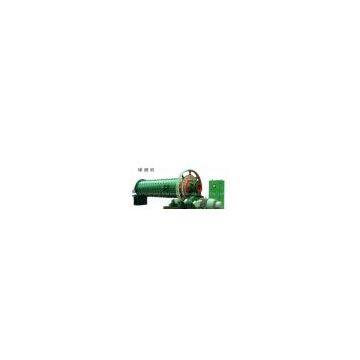

The top saler devotes heartily Ball Mill( overfall pattern control/it can improve the milled granularity and the capacity can be increased by 20-30%)

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

HCM

Place of Origin

China

Product Description

The ball mills we produce are of very good quality, and we promise good after-sale service for all our customers. Our ball mills can satisfy different requirement, and have good features such as low consumption, high capacity per hour, no pollution to the enviroment around, easy to be repaired.

Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical parameter:

Model	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	size of outputting feed (mm)	Production (t/h)	Power (kW)	Weight (t)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	380	56
Φ2200×9500	21	38	≤25	0.074-0.4	18-35	475	62
