double plug cementing head
USD $5000 - $5000
/ Set
2 Sets(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | QX | Place of Origin | China | |
| Model Number | 9 5/8 |
Product Description

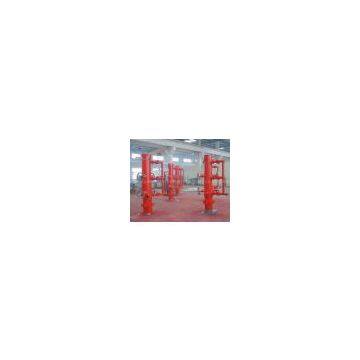

SSC DOUBLE-PLUG CEMENT HEAD
Special tool for pumping slurry and releasing plug. It can couple with two plugs simultaneously, and makes the drilling fluid fill into casing in turn and quickly. This can simplify the cementing operation, prevent cement pollution.
Features
1. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing. It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads.
2. Double balance pipe is developed.
3. Positive lever indicates plug releasing.
4. Main parts are made from AISI4145H alloy steel.
5. Top cover and union nut with large trapezoidial-threaded, it makes the tool convenient to disassemble and carry.
Technical Parameters
|
Specifications, (in)
|
Φ139.7
(5½")
|
Φ177.8
(7")
|
Φ193 .7
(7?")
|
Φ244.5
(9?")
|
Φ273
(10¾")
|
Φ339.7
(13?")
|
|
Overall-Length, mm
|
1950
|
2020
|
2020
|
2360
|
2360
|
2440
|
|
Manifold
|
2" Union
|
|||||
|
I.D. of Plug Container, mm
|
Φ125
|
Φ160
|
Φ175
|
Φ225
|
Φ250
|
Φ320
|
|
Length of Plug Container,mm
|
400
|
450
|
450
|
550
|
550
|
600
|
|
Working Pressure, MPa
|
35,50
|
35,50
|
35,50
|
35,50
|
35
|
35
|
