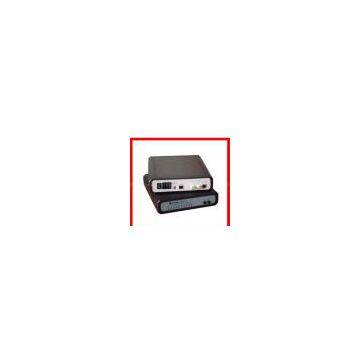

E1/T1 to Ethernet lan Converter (GVE-T1)

E1 T1 to Ethernet lan Converter (GVE-T1)



contact:Joe cheng
E-mail:joe[at]
MSN:chengling611[at]
Yahoo:joechengling[at]



Features

GVE-T1 is a double protocol Ethernet converter using one E1 line or T1 line to transmit Ethernet data and based on ASIC circuitry design technology. Its purpose is to extend transmission distance and applicable range. It is collocated with E1/HDB3 or T1/B8ZS as line interface, E1 can be either framed N*64Kbps (N=1-31) or unframed 2048Kbps, which are also known as channelization and unchannelization. Under the framed mode, it supports options of CAS/CCS (30 & 31 time slot), and CRC4 auto-adapt. T1 connects remote LAN through fully transparent unframed 1.544Mbps bandwidth. Transmission clock can be recovered from receiving signal G.703 lines and also can work in internal clock mode. Ethernet supports 10/100M auto-adapt.

Specifications

LAN table: 10000, automatic learning and updating

Filtering and Forwarding: 30000 frames/second

Buffer size: 64M

Throughput Delay: 1 frame

VLAN: 802.1Q

Standard: Conform with IEE802.3/IEEE 802.3u/Ethernet

Work mode: Full duplex/ half duplex

Data speed: 10/100Mbps auto-adapt

Physical interface: UTP; shield RJ-45; Cross and direct connection

Line transmission speed: N*64Kbps(N=1--31); 2048Kbps

Line coding options: HDB3/CRC4 auto-adapt

Format of line frame: G.703(framed/unframed)

Line interface : Impedance120ohm,RJ45 ;

              Impedance 75ohm,BNC

Transmission Features: Conform with G.703/G.704/G.706

Speed of line transmission:N*64Kbps(N=1--31)

Line code: B8ZS

Format of line frame: Unframed, fully transparent

Line interface: Balance 120 ohm, RJ45

Transmission features: Conform with ANSI T1.403-1999  ANSI T1.408, AT&T TR 62411

Clock: Internal clock, slave clock(G.703 clock)

Power supply: AC220V+-10%, 50Hz; DC48V+-15%

Power consumption: 5W

Volume: 245mmx215mmx50mm

           Local analogy loop-back

Test mode: Remote digital loop-back
