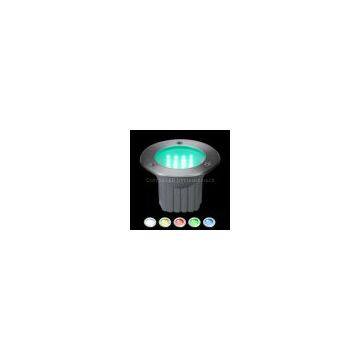

3020 SMD LED Inground Light

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Comlite		Place of Origin	China
Model Number	D2D0907

Festures:

1. IT class SMD LED.has extremely long lifetime

2. Refracted through the matted glass.the light is bright wthout glare.

Specifications:

Housing:	12# die-casting aluminum RAL9007 grey powder coated T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front ring:	304# stainless steel
Glass:	Prism tempered glass T=8mm
Loading capacity:	Exert force area of ā10=420kgs, ā30=740kgs
Waterproof cable gland:	IP-68 PG-9 PVC
Waterproof seal:	Molding shaped double silicone seal
LED:	9 or 16pcs 3020 LEDs
PCB:	Excellent heat conductivity aluminum, coefficient of heat , Conductivity≥2.0w/mK
Driver:	constant current output
Operating temperature:	0℃-40℃
Power cable:	H05RN-F 2X1.0m㎡ L=0.5m (low voltage) H05RN-F 3X0.75m㎡ L=0.5m (high voltage)
Mounting sleeve:	12# die-casting aluminum RAL9007 grey powder coated T=60-80um Adhesion of ISO class 1/ASTM class 4B

Remarks:

1. LED driver is customized when the circumstance of working temperature is below 0℃

2. Use only switching power supply or coiled transformer for 24VDC power input.

3. Customized 316# stainless steel is available.
